ECOM FD3041T OLT EPON 4 Ports PON Card

(0 Reviews)

Key Features Model: FD3041T 4 ports EPON PON card for EPON OLT E08EP-4S+ Warranty: 2 Years

Product Details

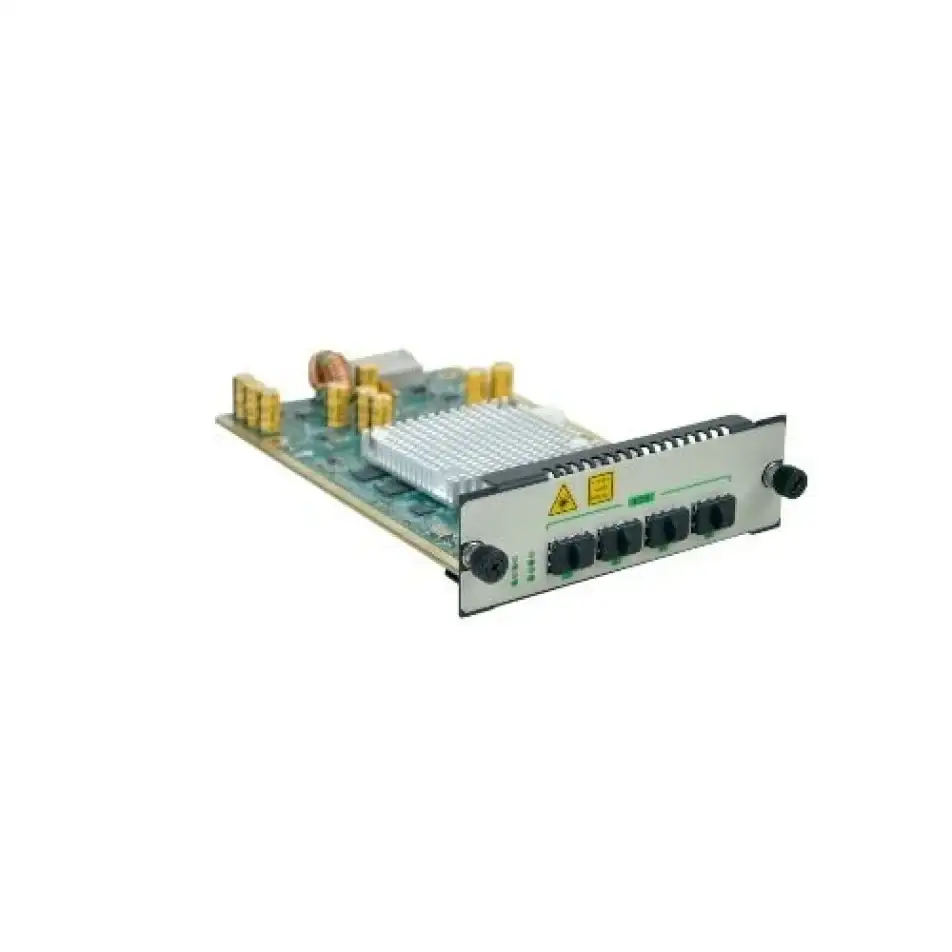

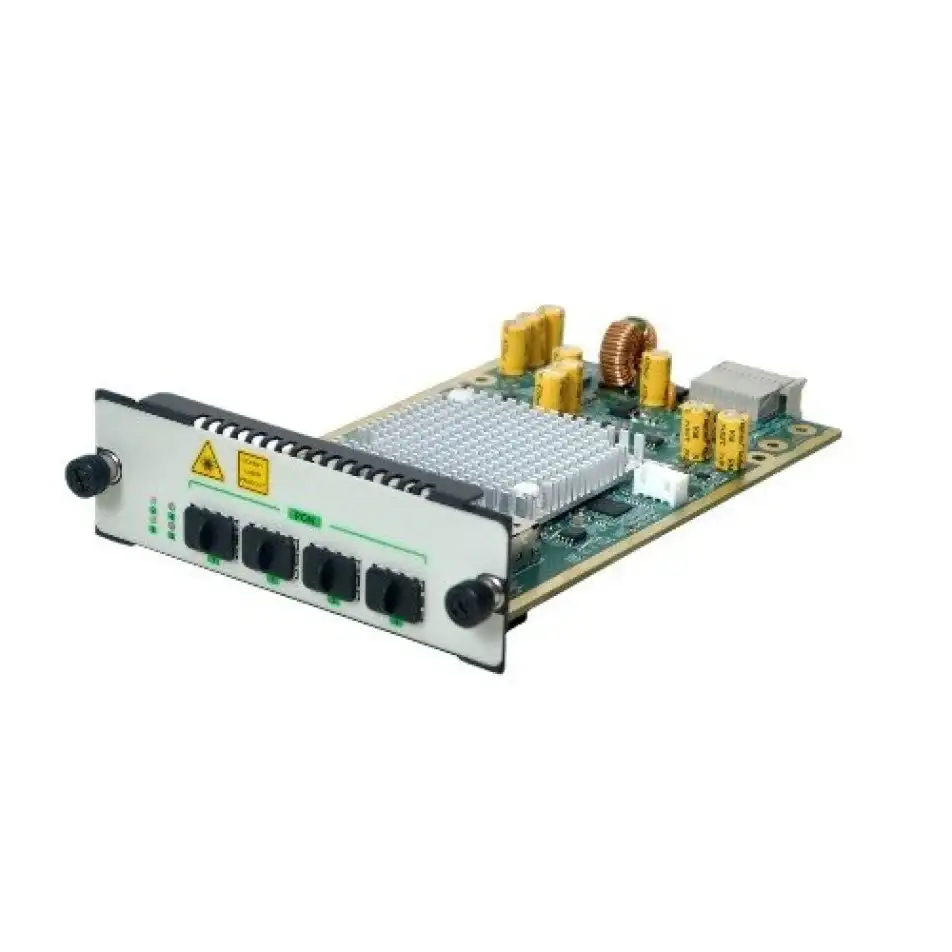

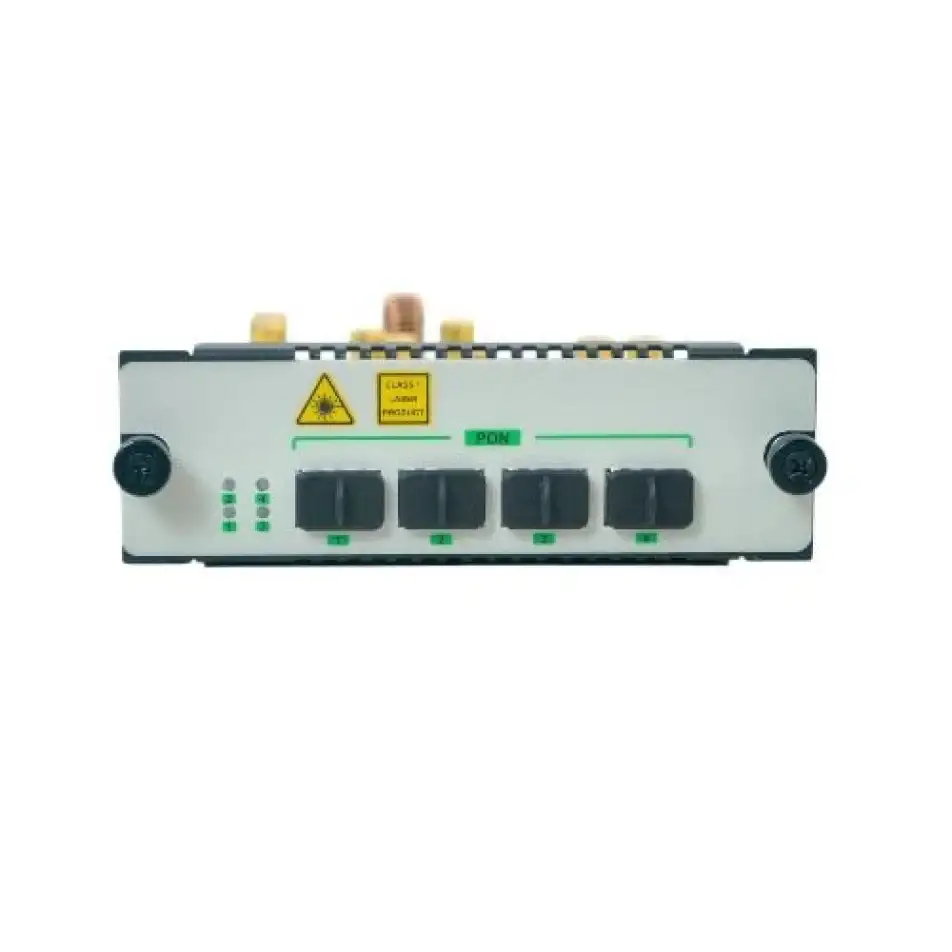

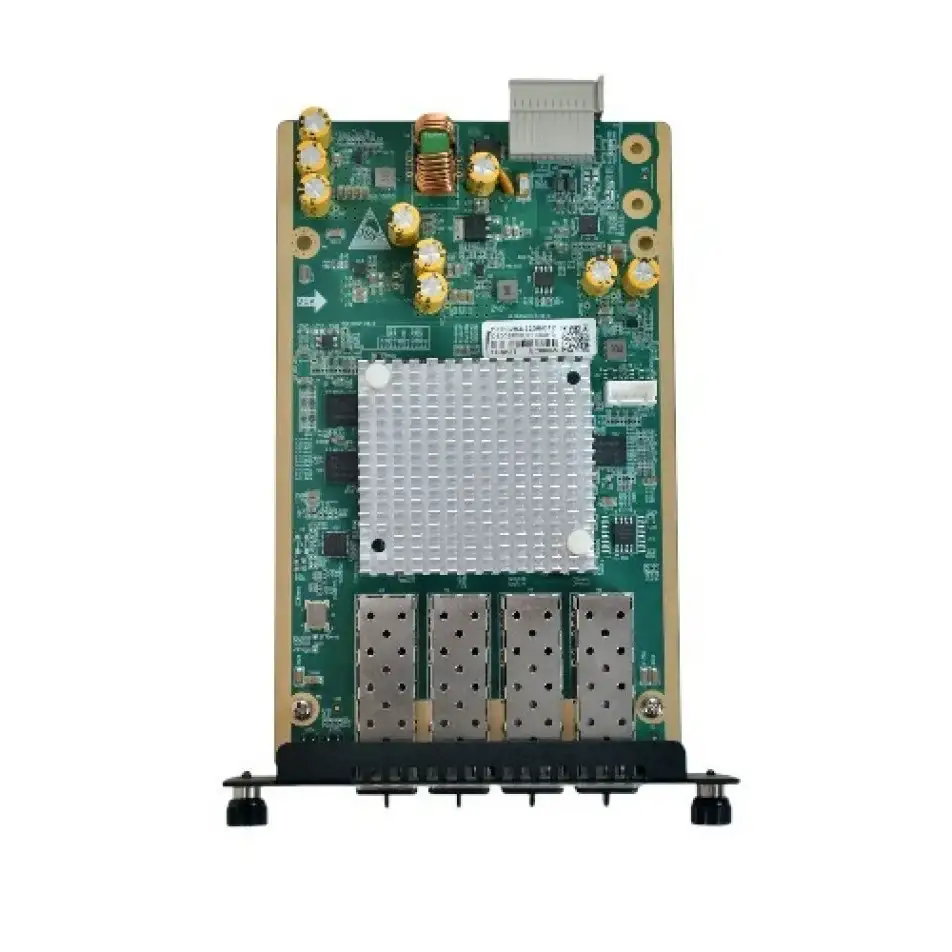

The ECOM FD3041T is a 4-port EPON Optical Line Terminal (OLT) expansion module designed for FTTH (Fiber to the Home) networks. Manufactured by C-Data, this module enhances the FD1304E-B1 OLT by adding four EPON SFP ports, allowing for increased scalability and service delivery capacity.

Key Features:

PON Ports: 4 SFP slots supporting EPON (IEEE 802.3ah) standards.
Transmission Distance: Up to 20 km using single-mode fiber (9/125μm SMF).
Data Rate: Symmetrical 1.25 Gbps upstream and downstream.
Wavelengths: 1490 nm for downstream (transmit) and 1310 nm for upstream (receive).
Splitting Ratio: Supports a maximum of 1:64, facilitating efficient bandwidth distribution.
Optical Power: Transmit power ranges from +2.5 to +7 dBm; receive sensitivity is ≤ -27 dBm.
Power Supply: Operates on 100-240V AC with dual redundant power supply options.
Management: Supports SNMP, Telnet, CLI, and Web-based management for comprehensive network control.
