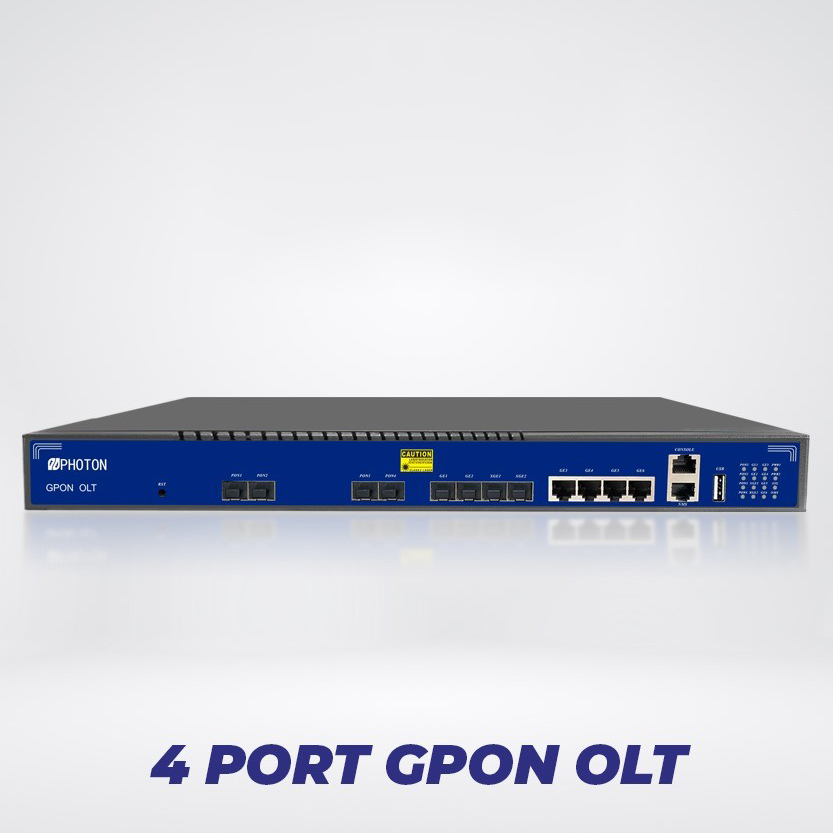

TBS 4 PON Ports GPON OLT

(0 Reviews)

Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements

16K MAC address

Support 4096 VLANs, port VLAN, and protocol VLAN

Support VLAN translation and QinQ

Support port isolation

Support 802.1D and 802.1W

QoS based on port, VID, TOS, and MAC address

IEEE802.x flow control

QoS based on port, VID, TOS, and MAC address

DHCP server, DHCP relay, DHCP snooping

Support ONT auto-discovery, auto configuration/link detection/remote upgrade of software

Support power-off alarm function, easy for link problem detection

Support port isolation between different ports

Specialized design for system breakdown prevention to maintain a stable system

Tcont DBA, Gemport traffic

Support remote software upgrade, download ONT firmware to OLT from web/tftp/ftp

Call for Price

Items	Unit	Specifications
PON standard		GPON ITU-T G.984.x, G.988
PON interface	Qty.	4*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power, Transmitting optical power: +3~+7 dBm. Transmission distance: 20 km. Max splitting ratio 1:128
PON interface	Speed	Upstream 2.488G Downstream 1.244G
Wavelength	nm	Tx1310, Rx 1490
Uplink	GE	4*GE(copper Ethernet)
Uplink	SFP GE SFP 10GE	2*GE(SFP)/10GE (SFP+) auto-detection
Layer 3		Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports		110/100BASE-T out-band port, 1CONSOLE port
Management Mode		SNMP, Telnet, CLI, WEB
VLAN		Tag / Un-tag，VLAN transmission，QinQ
Operating condition	℃	Operating temp: 0 ~ +50
Storing condition	℃	Storing temp: -40 ~ +85
Humidity	%	5~90(non-condensing)
Power Supply	AC	100～240V, 47/63Hz, (DC:-48V optional)
Power consumption	W	≤45
Dimension	mm	44222044（L×W×H）
Net weight	Kg	2.8
