Nest XPON 1GE ONT XP8100-HR

Name: Nest XPON 1GE ONT XP8100-HR
Brand: Nest
SKU: 1260
Price: 960.0 BDT
Availability: InStock

(0 Reviews)

Key Features

XPON (GPON/EPON) Dual Mode Support

1× Gigabit Ethernet (1GE) Port

Up to 20KM Fiber Transmission

Fast & Stable FTTH Connectivity

Low Power Consumption

Web UI & OMCI Management

Compatible with Major OLT Brands

Ideal for ISP & Home Broadband

Quantity:

Order on WhatsApp Call for order

Brand:

Specification

Item	Parameters	Specification
Interface	XPON Port	1 XPON (GPON/EPON) Port
	Downstream Speed	2.488Gbps
	Upstream Speed	1.244Gbps
	Optical	SC/UPC Single mode fiber
	Distance	Up to 20KM (1:128)
	Receiving Sensitivity	≤-30dBm
	Optical Power	0~+4dBm
Ethernet Port	1GE RJ45	Auto MDI/MDI-X, 100m Transmission
Management	Standard	OMCI (ITU-T G.984.4), Web Management
	Functions	Status, Configuration, Alarm, Logs
Physical Design	Material	Plastic Casing

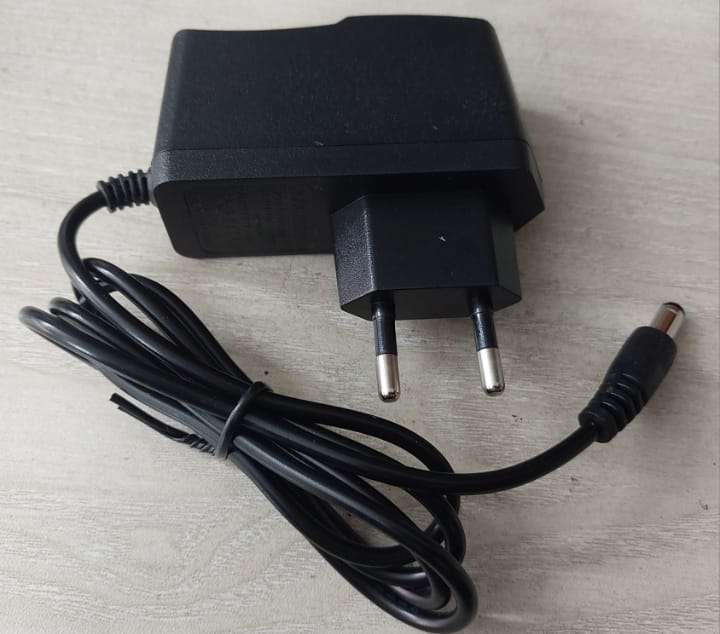

Power	Input	12V DC
	Consumption	<3W
Dimension	Size	115 x 133 x 25mm
Weight		0.3kg
Environment	Operating Temp	0°C to 50°C
	Storage Temp	-40°C to 85°C
	Humidity	10%–90% (Non-condensing)

Product Details

The Nest XPON 1GE ONT XP8100-HR is a high-speed GPON/EPON compatible Optical Network Terminal designed for FTTH networks. It features a 1*XPON port supporting 2.488Gbps downstream and 1.244Gbps upstream, ensuring stable and ultra-fast communication. With 1GE auto-negotiation port, web-based configuration, OMCI support, and low power consumption, this ONT provides superior performance and reliability for residential and enterprise connectivity. Its long-distance fiber support up to 20KM ensures coverage and efficiency, making it perfect for ISPs, SMEs, commercial networking, and broadband deployment.
