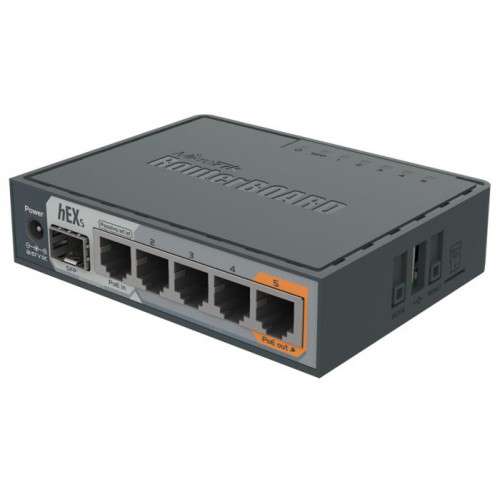

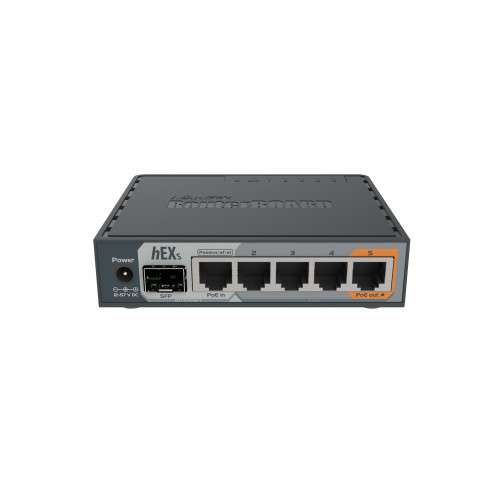

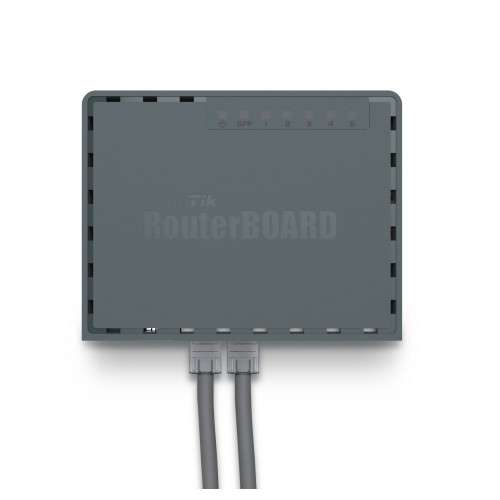

Mikrotik Hex S RB760iGS 5X Gigabit Ethernet Router

(0 Reviews)

Key Features

Model: Mikrotik RB760iGS
RAM: 256 MB
CPU core count: 2
Frequency: 880 MHz
DIM: 113 x 89 x 28 mm

Product Details

Mikrotik Hex S RB760iGS 5X Gigabit Ethernet Router

The Mikrotik RB760iGS hEX S 5x Gigabit Ethernet Router S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude. This Ethernet Router comes with 01 year of warranty.

Specifications

Key Features
Data Rate	10/100/1000
Button	1
Frequency	880 MHz
Interface	Architecture: MMIPS CPU: MT7621A CPU core count: 2 CPU nominal frequency: 880 MHz CPU Threads count: 4 Dimensions: 113 x 89 x 28 mm License level: 4 Operating System: RouterOS Size of RAM: 256 MB Storage size: 16 MB Storage type: FLASH
Ports	Ethernet ports: 5 Memory Cards: 1 Number of USB ports: 1 Memory card type microSD USB Power Reset Yes USB slot type USB type A
Others	PCB temperature monitor: Yes Voltage Monitor: Yes Mode button: Yes Tested ambient temperature -40°C to 70°C
Power Source
Power Mode	PoE in: 802.3af/at PoE in input Voltage: 12-57 V PoE out: Passive PoE up to 57V PoE-out ports: Ether5 Number of DC inputs: 2 (PoE-IN, DC jack) DC jack input Voltage: 12-57 V Max out per port output (input > 30 V): 500 mA Max out per port output (input < 30 V): 500 mA Max total out (A): 500 mA Max power consumption: 24 W Max power consumption without attachments: 6 W
Physical Dimension
Shell Color	Grey
Dimension	113 x 89 x 28 mm
Manufacturer warranty
Warranty	01 Year
