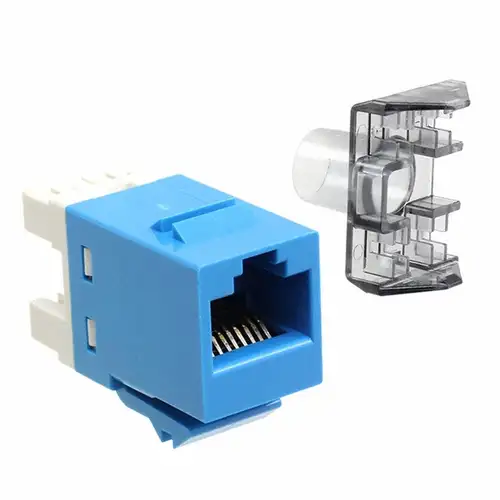

CommScope 1375055-6 SL 110 Cat 6 U/UTP Information Outlet Modular jack

(0 Reviews)

Key Features

MPN: 700206758
Model: 1375055-6
Material Type: Copper alloy, Flame Retardant, Thermoplastic
Termination Contact Plating: Nickel
Compatible Conductor Gauge: 22 AWG | 24 AWG
Insulation Resistance: 500 MOhm

Quantity:

Order on WhatsApp Call for order

Product Details

CommScope 1375055-6 SL 110 Cat 6 U/UTP Information Outlet Modular jack

The CommScope 1375055-6 is a Cat 6 U/UTP information outlet modular jack Connector can deliver high-performance and stable connectivity for your network devices. It is an unshielded jack with eight copper alloy contacts that may terminate solid or stranded wires of 22 or 24 AWG.

It has an IDC termination type that is compatible with T568A and T568B wiring systems. The 1375055-6 Cat 6 U/UTP Information Outlet from CommScope The modular jack is small enough to fit into standard holes and is easy to install and remove. It complies with the ANSI/TIA Category 6A standard, which means it can handle up to 10 Gbps of data transfer and has a cable length of up to 100 meters.
