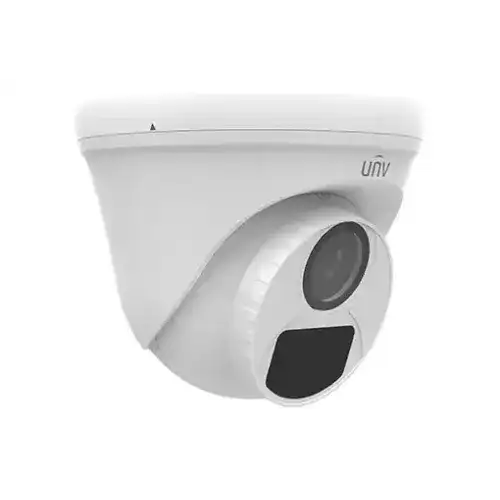

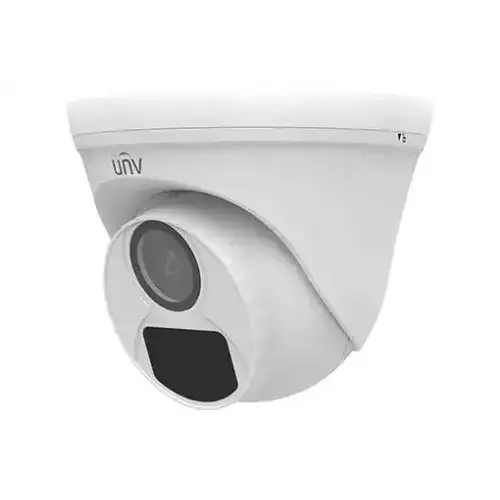

Uniview UAC-T115-F28 Turret Analog Camera
Key Features
- Model: UAC-T115-F28
- Image Sensor: 1/3” Progressive Scan CMOS
- Maximum Resolution: 5 Megapixel (2880x1620)
- Lens:2.8 mm
- Interface: 5.5 mm
| Camera Feature | ||
| Image Sensor | 1/3” Progressive Scan CMOS | |
| Effective Pixels | 5 Megapixel (2880x1620) | |
| IR Distance | Up to 20m | |
| Lens | ||
| Angle of View | H: 90.5° V: 49.6° D: 109.5° | |
| Physical Specification | ||
| Dimension | Φ118mm*96mm (diameter*height) | |
| Weight | 182g(0.401lb) | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.4W | |
| Interface | 5.5 mm | |
| Others | Weatherproof IP67 | |
| Warranty | ||
| Warranty | 1 Year Warranty | |
The Uniview UAC-T115-F28 Turret Analog Camera is a flexible and long-lasting camera capable of providing high-quality images in a variety of situations. It has a resolution of 5MP and four video output modes: TVI, AHD, CVI, and CVBS. Uniview UAC-T115-F28 has an IR-cut filter with an auto switch that can switch between day and night mode. The Uniview UAC-T115-F28 Turret Analog Camera also has a 3-Axis design that allows it to spin 180° horizontally and vertically and change the angle freely.
Warranty Period: 1 Year Official Warranty
Warranty Coverage:
Manufacturing defects
Hardware malfunction under normal operating conditions
Factory faults in image sensor, IR module, or internal components
Warranty Does Not Cover:
Physical damage or cracked body
Damage due to improper installation
Electrical damage caused by voltage fluctuation or lightning
Water damage caused by incorrect mounting
Unauthorized repair or tampering
Warranty Claim Requirements:
Original purchase invoice required
Serial number must remain intact
Product must not show visible physical damage
