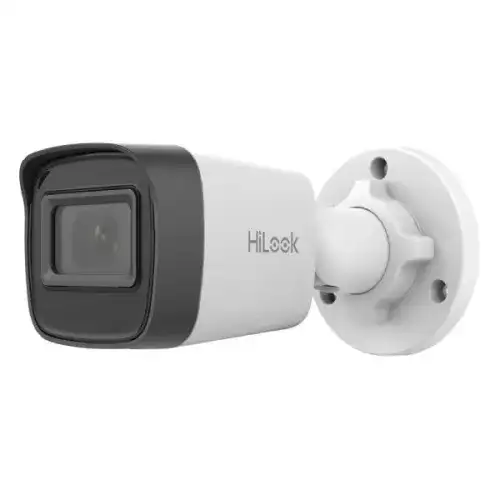

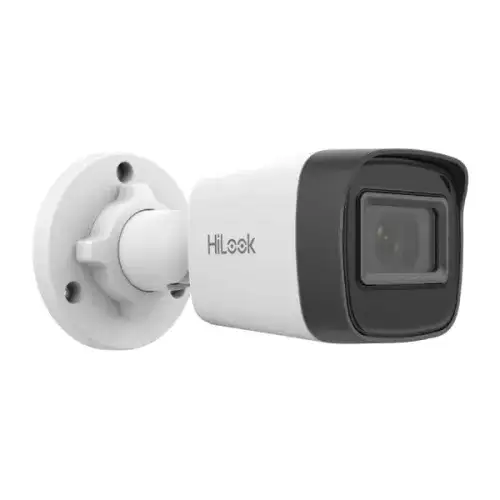

Hikvision HiLook IPC-B121H-C 2MP Bullet IP Camera

Key Features

  • Model: HiLook IPC-B121H-C
  • Image Sensor: 1/2.9" Progressive Scan CMOS
  • Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps.
  • Lens: 4mm, Aperture: F2.2, IR Distance: 20 meters
  • Features: PoE, DWDR, 3D DNR, Smart Detection, IP67

Brand: Hikvision

Specification

Specification

Camera
Image Sensor1/2.9" Progressive Scan CMOS
Resolution1920 × 1080
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
SNR (dB)≥ 52 dB
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens
Lens MountM12
Focal Length2.8 and 4 mm
ApertureF2.2
Field of View2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Iris TypeFixed
DORI Distance2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
IR LEDsSmart Supplement Light
IR DistanceUp to 20 m
IR Wavelength850 nm
Video
Video CompressionMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Bit Rate32 Kbps to 8 Mbps
Day/NightAuto,Schedule
BLCYes
HLCYes
WDRDigital WDR
Noise Reduction3D DNR
MirrorYes
Network
ProtocolTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
Simultaneous Live ViewUp to 6 channels
APIISAPI,SDK
User/HostUp to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200
Web BrowserPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
OthersSecurity: Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Interface
Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Alarm
Basic DetectionMotion detection, exception
OthersLinkage: Notify surveillance center
Environment
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity5% or less (non-condensing)
Storage Temperature-30 °C to 60 °C (-22 °F to 140 °F).
Storage Humidity95% or less (non-condensing)
Water ProtectionIP67
Physical Information
Casing MaterialPlastic
Dimension138.8 mm × 60.9 mm × 57.9 mm (5.46" × 2.4" × 2.3")
WeightApprox. 175 g (0.4 lb.)
Warranty Information
Warranty1 Year

Product Details

Hikvision HiLook IPC-B121H-C 2MP Bullet IP Camera

The Hikvision HiLook IPC-B121H-C 2MP Bullet IP Camera is a high-performance surveillance system that provides clear imaging and reliable outside monitoring. With a 1/2.9" progressive scan CMOS sensor, it provides sharp 2MP resolution at up to 30 fps and a maximum output of 1920 × 1080 pixels. The Hikvision IPC-B121H-C Bullet IP Camera offers both H.265+/H.265 and H.264+/H.264 video compression, allowing for efficient storage without sacrificing quality. Its fixed 4 mm lens has an 80° horizontal, 44° vertical, and 94° diagonal field of view, making it suitable for wide-area monitoring. The Hikvision HiLook IPC-B121H-C 2MP Bullet IP Camera is designed for versatile installation and can pan, tilt, and rotate up to 360°, 90°, and 360°, respectively. It provides clear sight even in low-light conditions, with a minimum illumination of 0.01 lux in color and 0 lux in black and white using IR. The IR cut filter and clever IR supplement light (850 nm wavelength) allow night vision up to 20 meters. The Hikvision HiLook IPC-B121H-C Bullet IP Camera has an IP67 rating and is dust and water resistant, making it suited for a variety of outdoor environments. Power over Ethernet (PoE) streamlines installation by transmitting both power and data over a single connection. It offers up to six simultaneous live views and 32 users with multi-level access, allowing for effective user management. The Hikvision HiLook IPC-B121H-C 2MP Bullet IP Camera has motion detection, exception warnings, digital WDR, 3D DNR, and picture enhancements like brightness, contrast, and sharpness modification via client software or a web browser. Password protection, MAC address authentication, security audit logs, and watermarks all help to ensure secure access. This Hikvision HiLook IPC-B121H-C 2MP Bullet IP Camera is compatible with platforms such as iVMS-4200 and web browsers such as IE, Chrome, and Firefox, and it integrates seamlessly into existing systems.

Warranty Policy

Warranty Period: 1 Year

Warranty Coverage

  • Manufacturing defects

  • Hardware malfunction under normal usage

  • Internal component failure

Warranty Exclusions

  • Physical damage

  • Water damage caused by improper installation

  • Power surge or lightning damage

  • Unauthorized repair or modification

  • Burnt or damaged PCB due to voltage fluctuation

Claim Process

  1. Original invoice must be provided.

  2. Product must be submitted with all accessories.

  3. Inspection will be completed within 3 to 7 working days.

  4. Repair or replacement will be provided as per manufacturer policy.
