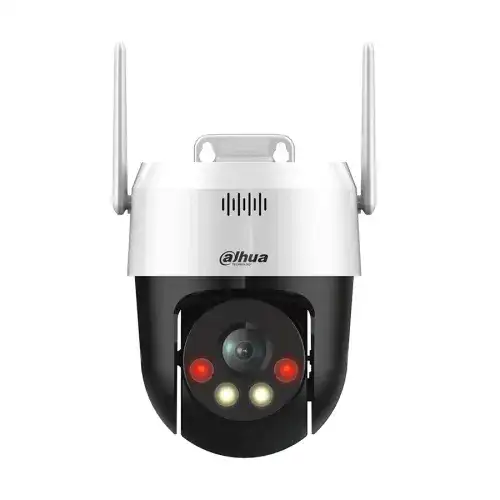

Dahua P5AE-PV 5MP Smart Dual Light Pan & Tilt WiFi Camera

(0 Reviews)

Key Features

MPN: DH-P5AE-PV
Model: P5AE-PV
Image Sensor: Dual 1/3" CMOS Sensor
Max. Output Resolution: 5 MP (2880 × 1620) @25/30 fps
IR Distance: Up to 30 m (IR and warm light)
Features: Human & Vehicle Detection, Built-in Mic & Speaker

Call for Price

Brand:

Specification

General Information
Image Sensor	1/2.8" CMOS
Effective Pixels	5MP
Max. Resolution	2880 (H) × 1620 (V)
Frame Rate	Main stream: 5M/1080p/720p/640 × 360 @ (1–25/30 fps) Sub stream 1: D1/VGA/CIF @ (1–25/30 fps)
Lens	4.0 mm
Pan & Tilt	Pan: 0°–345° Tilt: 0°–+80°
IR Distance	Up to 30 m (IR and warm light)
Field of View	H: 80.4°; V: 58.1°; D: 104.8°
Video Compression	Smart H.265+/H.265/Smart H.264+/H.264B/M/H, MJPEG (Sub Stream 1)
Bit Rate	H.264: 104–8192 kbps; H.265: 41–8192 kbps
Audio Input / Output	built-in Mic, built-in speaker
WDR	DWDR
Smart Alarm	1 built-in alarm + up to 10 custom alarms; volume: 0–100%; plays 1–10 times
Button	Reset Button
Storage Type	Micro SD card (up to 256 GB)
Mobile App	iOS & Android
Network & Connectivity
Wireless Network	IEEE802.11b/g/n
Wired Network	RJ-45 (10/100 Base-T)
Power
Power Supply	12 VDC, 1 A ±10%
Physical Specification
Color	White
Dimension	140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
Weight	0.5 kg (1.10 lb)
Operating Temperature	–30°C to +55°C (–22°F to +131°F)
Warranty Information
Warranty	2 Years Warranty (Without Adapter)

Product Details

Dahua P5AE-PV 5MP Smart Dual Light Pan & Tilt WiFi Camera

The Dahua P5AE-PV 5MP Pan & Tilt WiFi Camera features a 1/2.8-inch CMOS sensor with a brilliant 5MP resolution of 2560 × 1920, capturing clear details day and night. Its electronic shutter, which ranges from 1 second to 1/100,000 second, guarantees that exposure is balanced under all lighting circumstances. The Dahua P5AE-PV 5MP WiFi Camera, with a 4.0 mm lens, an F1.6 aperture, and a close focus distance of only 0.3 meters, has a wide field of view of over 104 degrees, making it perfect for monitoring big regions. The Dahua P5AE-PV 5MP Smart Dual Light Pan & Tilt WiFi Camera employs two IR lights and two warm lights to provide nighttime monitoring with an illumination distance of up to 30 meters, allowing for versatile night settings such as color and black and white. Smooth pan and tilt movement with a pan range of 345 degrees and a tilt range of 80 degrees, as well as support for 300 presets, offers broad and precise coverage. Advanced IVS capabilities such as tripwire and intrusion detection, human detection, and SMD 3.0 provide accurate motion alerts. Active deterrent provides an additional layer of defense with warm light flashing and a built-in alarm that allows unique sound warnings. Video compression options such as Smart H.265+ and H.264 allow for efficient storage on microSD cards of up to 256 GB or via FTP. The Dahua WiFi Camera supports Ethernet and robust 2.4 GHz WiFi, is compatible with most browsers, and works seamlessly with the Smart PSS and DMSS apps for iOS and Android.
