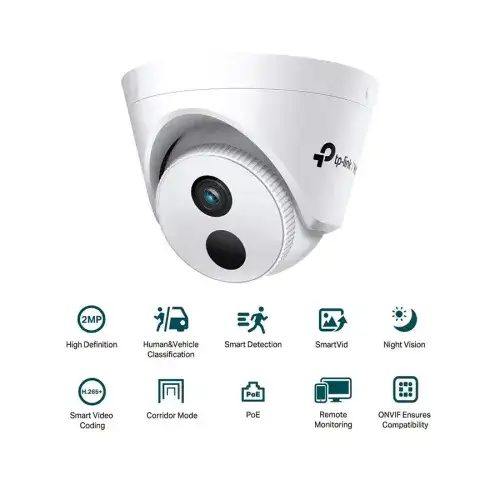

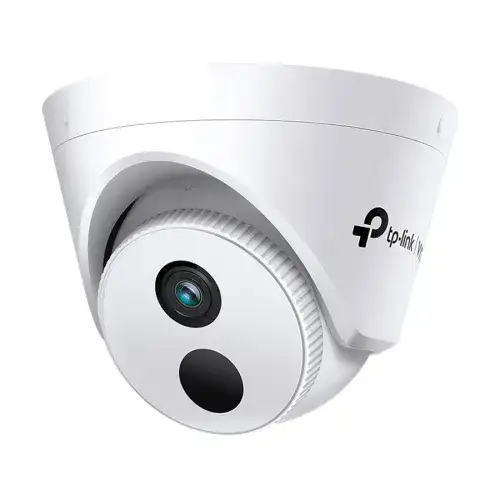

TP-Link VIGI C420I 2MP IR Turret IP Camera

Key Features

  • Model: VIGI C420I
  • Image Sensor: 1/3” Progressive Scan CMOS
  • Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps.
  • Lens: 2.8mm, Aperture: F2.2, IR Distance: 30 meters
  • Features: PoE, DWDR, 3D DNR, Smart Detection

Brand: TP-LINK

Specification

Specification

Camera Feature
Image Sensor1/3” Progressive Scan CMOS
IR Distance30m
OthersVideo Compression:
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions:
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution: 2MP (1920 × 1080)
Lens
TypeFixed Focal Lens
Focal Length2.8 mm
ApertureF2. 2
Angle of ViewHorizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°
Physical Specification
Dimension123 × 123 × 83 mm
Weight0.19 Kg
PowerPoE (802.3af/at, class 0)
Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
OthersHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Warranty
Warranty1 Year

Product Details

TP-Link VIGI C420I 2MP IR Turret IP Camera

The VIGI C420I Dome Camera has a 2 MP resolution, which is more than enough to capture some of the finer details. allows for the more precise separation of cars and people so that you can receive event notifications. When someone enters an area you've designated, crosses a border, blocks the camera, or takes away or abandons an object, you may monitor the feeds and receive notifications. Your cameras send compressed, clear video without requiring additional bandwidth, which frees up storage space, lightens network traffic, and lowers monitoring expenses without compromising image quality. Professional technologies from VIGI, such as Smart IR, WDR, 3D DNR, and Night Vision, process videos to significantly increase their quality—a crucial aspect of your surveillance. helps to monitor long and narrow regions and lets you switch the visual aspect ratio from 16:9 to 9:16. One RJ45 cable can carry data and power to your PoE camera, making it easy to connect and power it. An adapter for electricity is not required. The C420I has two distinct lens types to better meet your security demands, whether you need a wide-angle lens to cover confined locations or a greater millimeter lens for longer distances in open spaces. Using the NVR UI, VIGI app, and VIGI Security Manager, you can fully manage your security. The cable of the TP-Link VIGI C420I 2MP Dome IP Camera can be easily routed into a dropped ceiling or, to prevent drilling, inserted through the side outlet of the camera.

Warranty Policy

Warranty Period: 1 Year

Warranty Coverage

  • Manufacturing defects

  • Internal hardware malfunction under normal usage

  • Factory related component issues

Warranty Not Covered

  • Physical damage due to misuse or impact

  • Damage from improper installation

  • Electrical damage due to voltage fluctuation or lightning

  • Unauthorized repair or modification

Warranty Claim Process

  1. Original invoice required.

  2. Product must be submitted for inspection.

  3. Evaluation completed within 3 to 7 working days.

  4. Repair or replacement provided according to manufacturer policy.
