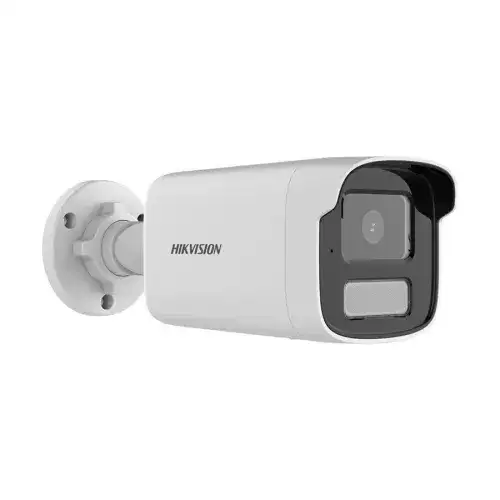

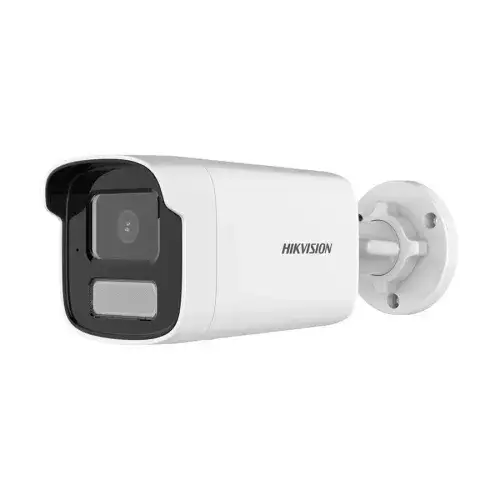

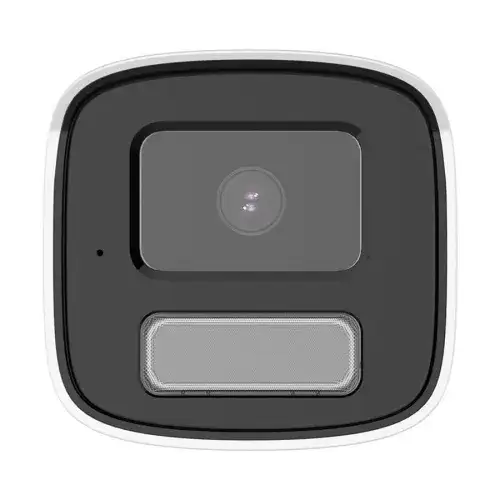

Hikvision DS-2CD1T23G2-LIU 2MP Bullet IP Camera

(0 Reviews)

Key Features

Model: DS-2CD1T23G2-LIU
Image Sensor: 1/2.9" Progressive Scan CMOS
Resolution: Max. 2MP (1920 × 1080) at 25/30 fps.
Lens: 4 mm; 6 mm, Aperture: F1.6, IR Distance: 50m
Features: PoE, DWDR, 3D DNR, Smart Detection, IP67

Call for Price

Brand:

Specification

Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Resolution	1920 × 1080
Shutter Speed	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
SNR (dB)	≥ 52 dB
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens
Lens Type	Fixed focal lens
Lens Mount	M12
Focal Length	4 and 6 mm optional
Aperture	F1.6
Field of View	4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° 6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°
Iris Type	Fixed
DORI Distance	4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m
Illuminator
IR LEDs	IR, White Light
IR Distance	Up to 50 m
IR Wavelength	850 nm
Video
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream	50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Bit Rate	32 Kbps to 8 Mbps
Day/Night	Auto,Schedule
BLC	Yes
HLC	Yes
WDR	Digital WDR
Gain Control	Yes
Region of Interest (ROI)	1 fixed region for main stream
Mirror	Yes
Privacy Masking	4 programmable polygon privacy masks
Audio
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Built-in Microphone	Yes
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz
Audio Bit Rate	64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Others	Audio Type: Mono sound
Storage
Card Slot	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Network
Protocol	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI ,SDK
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Client	iVMS-4200,Hik-Connect
Web Browser	Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Alarm
Basic Detection	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Others	Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
Environment
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity	Humidity 95% or less (non-condensing)
Storage Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Humidity	Humidity 95% or less (non-condensing)
Water Protection	IP67
Power
Power Supply	12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
PoE Standard	IEEE 802.3af
Physical Information
Casing Material	Metal & Plastic
Dimension	83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")
Weight	Approx. 580 g (1.3 lb.)
Warranty Information
Warranty	1 Year

Product Details

Hikvision DS-2CD1T23G2-LIU 2MP Bullet IP Camera

The Hikvision DS-2CD1T23G2-LIU 2MP Fixed Bullet IP Camera is designed to provide high-quality security surveillance. It has a 2MP resolution, which captures clean and detailed film to improve sight. The Smart Hybrid Light technology automatically alternates between infrared and warm LED illumination. This Hikvision DS-2CD1T23G2-LIU network IP camera provides exceptional night vision and color imagery even in low-light circumstances. Whether day or night, this camera produces crisp and precise images. Its fixed bullet construction ensures durability and dependability, making it ideal for long-term outdoor usage. The camera's IP67-rated waterproof enclosure keeps it safe from water, dust, and extreme climatic conditions, making it excellent for outdoor surveillance. The Hikvision DS-2CD1T23G2-LIU features sophisticated motion detection and can distinguish between persons. This eliminates false alarms and makes security alerts more accurate. The H.265+ video compression technique saves storage space while keeping high-definition video quality. This saves bandwidth while making footage easier to save and manage. Setting up the camera is straightforward thanks to PoE (Power over Ethernet) compatibility, which eliminates wire clutter and increases installation efficiency. It also connects seamlessly with Hikvision's security management software, allowing for remote access and real-time monitoring from anywhere. Whether you're protecting your home, workplace, or company, the Hikvision DS-2CD1T23G2-LIU 2MP Fixed Bullet Network Camera delivers high-definition images, sophisticated security features, and dependable protection. It's a robust surveillance solution that protects your property while providing user-friendly smart technologies.
