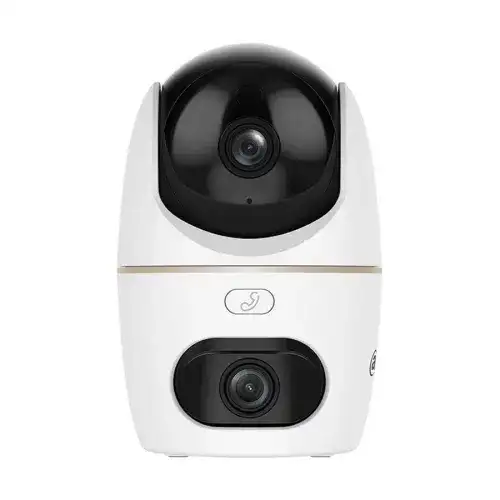

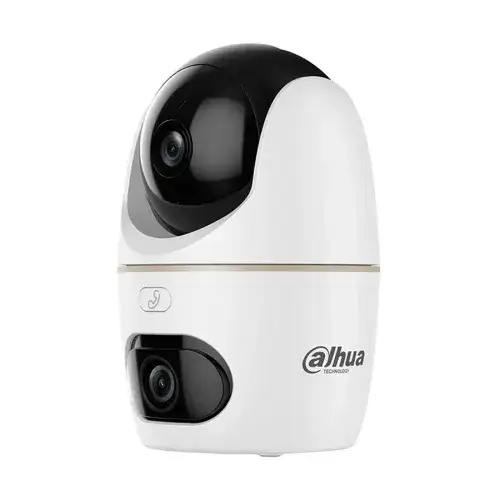

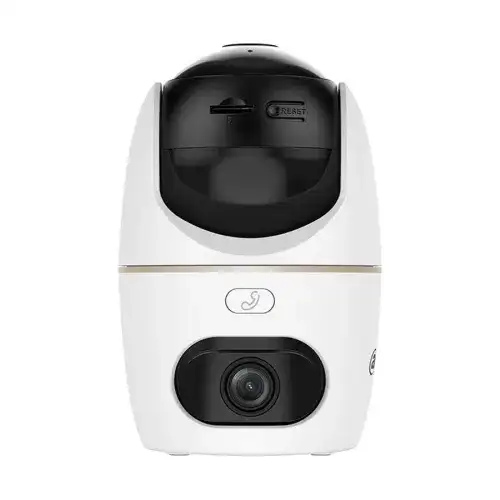

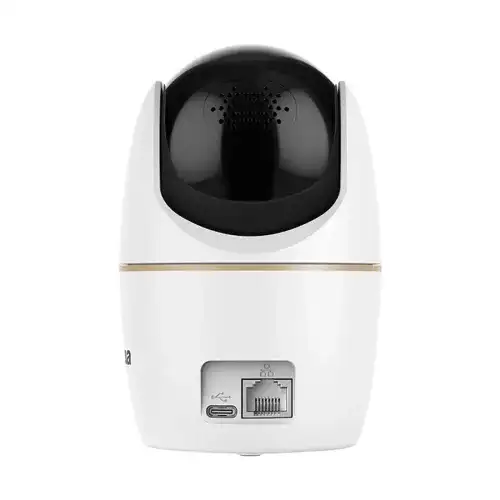

Dahua H5D-5F 5+5MP Dual-Lens Pan & Tilt Portable WiFi Camera

(0 Reviews)

Key Features

MPN: DH-H5D-5F
Model: H5D-5F
Image Sensor: Dual 1/3" CMOS Sensor
Max. Output Resolution: 5+5 MP (2880 × 1620) @25/30 fps
IR Distance: Up to 50 m (164.04 ft) (IR) PT Lens
Features: Motion Detection, built-in Mic & Speaker

Call for Price

Brand:

Specification

General Information
Image Sensor	1/3″ CMOS
Effective Pixels	5MP+5MP
Max. Resolution	2880 (H) × 1620 (V)
Frame Rate	Main stream: 2880 × 1620@15 fps sub stream: 640 × 360@15 fps
Lens	Dual Lens (Fixed Lens & PT Lens)
Pan & Tilt	Pan: 0° to 349° Tilt: –5° to 90°
IR Distance	Fixed Lens Illumination Distance: Up to 30 m (98.43 ft) (IR) PT Lens Illumination Distance: Up to 50 m (164.04 ft) (IR), Up to 40 m (131.23 ft) (Warm light)
Field of View	H: 88°; V: 48°; D: 104° PT lens: H: 49°; V: 26°; D: 57°
Video Compression	H.265
Bit Rate	H.265: 768 kbps–4096 kbps
Audio Input / Output	built-in Mic, built-in speaker
WDR	DWDR
Smart Alarm	Abnormal Sound Alarm
Button	Reset Button
Storage Type	Micro SD card (up to 256 GB)
Mobile App	iOS & Android
Network & Connectivity
Wireless Network	IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz
Wired Network	RJ-45 (10/100 Base-T)
Power
Power Supply	5 VDC
Power Consumption	Basic: 2.5 W; Max.: 5.4 W (pulling stream+ IR + PT rotation)
Physical Specification
Color	White
Dimension	Φ80.9 mm × 125.7mm (3.19" × Φ4.95")
Weight	233 g (0.51 lb)
Operating Temperature	–10 °C to +45 °C (+14 °F to +113 °F)
Warranty Information
Warranty	2 Years Warranty (Without Adapter)

Product Details

Dahua H5D-5F 5+5MP Dual-Lens Pan & Tilt Portable WiFi Camera

The Dahua H5D-5F Dual-Lens Pan & Tilt WiFi Camera comes with dual-lens system that combines a fixed lens and a PT lens. Both lenses use a 1/3-inch CMOS sensor with a high resolution of 2880 × 1620 for sharp and detailed video. The fixed lens options include 2.8 mm or 3.6 mm focal lengths with wide fields of view, while the PT lens provides smooth pan up to 349 degrees and tilt from -5 to 90 degrees, letting you to monitor a large area with ease. The Dahua H5D-5F Dual-Lens WiFi Camera has infrared illumination that can reach up to 50 meters and warm light support on the PT lens, ensuring reliable night vision in both black and white and color. The Dahua H5D-5F Portable WiFi Camera stands out for its intelligent features, such as excellent person and pet detection, which help eliminate false warnings. Motion detection, aberrant sound warnings, and privacy mode provide additional levels of control and peace of mind. H.265, an effective video compression method, allows for seamless streaming at up to 15 frames per second while saving storage space. Audio monitoring is enabled with a built-in microphone and speaker that use G.711a audio compression to provide clear two-way communication. Connectivity is versatile, with dual-band Wi-Fi connectivity on both 2.4 and 5 GHz, Bluetooth pairing for simple setup, and an RJ-45 Ethernet port for wired stability. Storage is straightforward, with microSD card compatibility up to 256 GB, and remote management is available via the DMSS app for iOS and Android devices.

Warranty Policy

2 Years Manufacturer Warranty
Warranty covers manufacturing defects only.
Warranty does not cover physical damage, water damage, power surge, improper installation, or damaged adapter.
Warranty is void if the product is tampered with or repaired by unauthorized personnel.
Adapter is not covered under warranty.
Customer must provide proof of purchase for warranty claim.
Replacement/repair time depends on service availability and stock.
