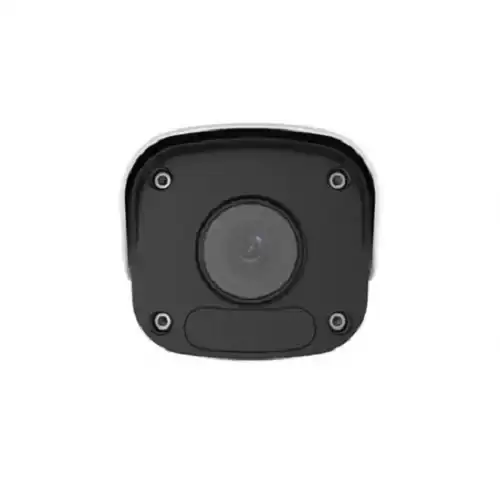

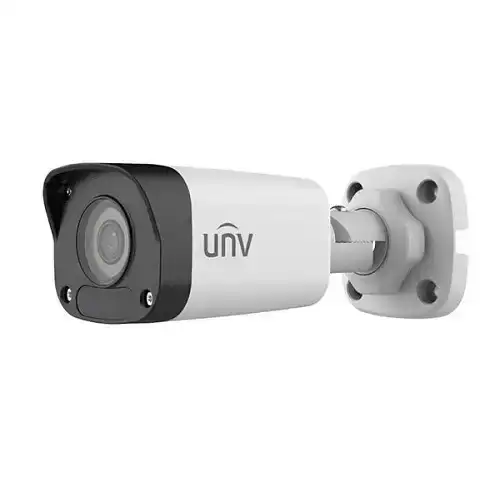

Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera

Key Features

  • Model: IPC2122LB-SF40-A
  • Image Sensor: 1/2.8", Progressive scan, CMOS
  • Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps.
  • Lens: 4.0mm, Aperture: F2.0, IR Distance: 30 meters
  • Features: PoE, 2D/3D DNR, Smart Detection, IP67

Brand: Uniview

Specification

Specification

Camera Feature
Image Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
Effective Pixels1920 x 1080
IR DistanceUp to 30m (98ft) IR distance
OthersWhite Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Video Bit rate: 128 Kbps~16 Mbps
IR Control: Auto/ Manual
Lens
Type4.0mm@F2.0
Focal Length850nm
Angle of View87.5° x 46.3° x 92.4°
Others2D/3D DNR

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Physical Specification
Dimension161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
Weight0.27kg (0.60lb)
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Interface10/100M Base-TX Ethernet
OthersWorking Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
IP67 Water & Dust Protection
Warranty
Warranty1 Year Warranty

Product Details

Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera

The Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera with 1/2.8" CMOS 2.0 megapixel, main stream 1080P (1920*1080), Maximum 30fps, 720P (1280*720), Maximum 30fps and sub-stream D1 (720*576), Maximum 30fps, 640*360, Maximum 30fps, 2CIF(704*288), Maximum 30fps, CIF(352*288), Maximum 30fps, Video bit rate 128 Kbps~16 Mbps, Motion detection and privacy mask has up to 4 areas, up to 4 OSDs. This Uniview IP camera provides up to 30 meters of 2D/3D IR distance. This Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera has IP67 Ingress protection, and the enclosure can normally work in soaking 1 Meter deep water for 30 minutes. This Uniview IPC2122LB-SF40-A has 12V DC PoE Power Supported, it is widely applied to outdoor environments with unstable voltage, and follows IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP network protocols. This bullet camera features ROI Ultra 265, H.265, and H.264.

Digital Noise Reduction

The Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera has 3D Digital Noise Reduction. This 3D DNR fixes picture noise and reduces color mixture errors.

Warranty Policy

Warranty Period: 1 Year

Warranty Coverage

  • Manufacturing defects

  • Internal hardware malfunction under normal use

  • Factory related component failure

Warranty Exclusions

  • Physical damage or impact damage

  • Damage due to improper installation

  • Electrical damage caused by voltage fluctuation or lightning

  • Water damage due to incorrect mounting

  • Unauthorized repair or modification

Warranty Claim Procedure

  1. Original purchase invoice required.

  2. Product must be submitted for inspection.

  3. Technical evaluation completed within 3 to 7 working days.

  4. Repair or replacement provided as per manufacturer policy.
