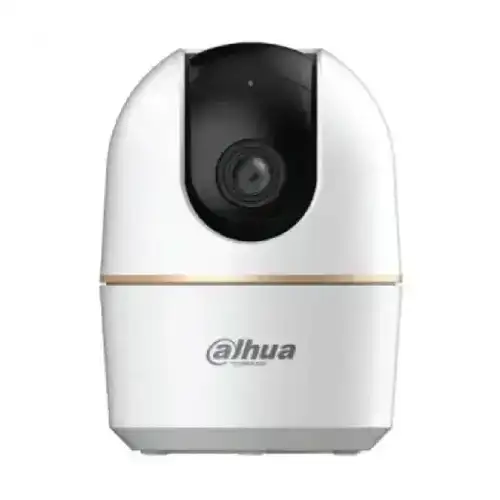

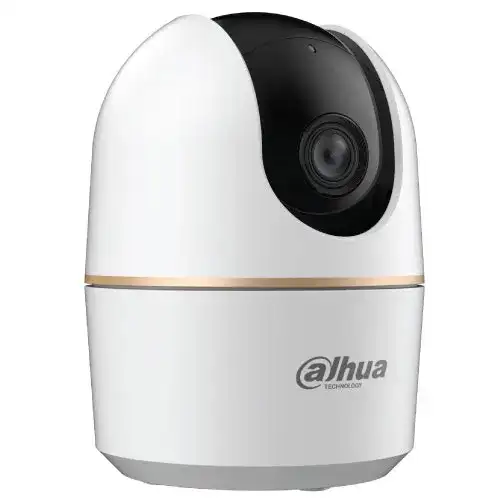

Dahua DH-IPC-H5AE 5MP Indoor Pan & Tilt portable WiFi Camera

Key Features

  • Model: DH-IPC-H5AE
  • Image Sensor: 1/3" CMOS
  • Max. Output Resolution: 5MP (2880 × 1620) @25/30 fps.
  • IR Distance: Up to 10 m (32.81 ft) (IR)
  • Features: Motion detection, built-in Mic & speaker, DWDR

Brand: Dahua

Specification

Specification

General Information
Image Sensor1/3″ CMOS
Effective Pixels5MP
Max. Resolution2880 (H) × 1620 (V)
LensMax. Aperture: F2.0
Pan & TiltPan: 0° to 355°;
Tilt: –5° to 80°
IR DistanceUp to 10 m (32.81 ft) (IR)
Field of ViewH: 74°; V: 41°; D: 88°
Video CompressionH.265
Bit RateVideo Bit Rate: H.265: 80 kbps–4096 kbps
Audio Input / Outputbuilt-in Mic, built-in speaker
WDRDWDR
ButtonReset Button
Storage TypeMicro SD card (up to 256 GB)
Mobile AppiOS & Android
CertificationsCE
Power
Power Supply5 VDC
Power ConsumptionMax.: 4 W (live + IR + PT rotation)
Physical Specification
ColorWhite
Dimensionφ77.8 mm × 108.1 mm (φ3.06″ × 4.26″)
Weight195 g (0.30 lb)
Operating Temperature–10 °C to +45 °C (+14 °F to +113 °F)
Warranty Information
Warranty01 Year Warranty

Product Details

Dahua DH-IPC-H5AE 5MP Indoor Pan & Tilt portable WiFi Camera

The Dahua DH-IPC-H5AE 5MP Fixed-focal Wi-Fi Pan & Tilt Portable WiFi Camera is intended for high-performance indoor security and includes innovative capabilities to improve monitoring efficiency. This camera's 1/3-inch CMOS image sensor has 5MP resolution (2880 × 1620 pixels) for excellent recording. The electronic shutter speed extends from 1/3 to 1/100,000 seconds, enabling precise pictures in a variety of lighting settings. The built-in infrared (IR) illumination provides vision up to 10 meters and adjusts automatically depending on ambient lighting. Users may swivel the camera up to 355° horizontally and tilt from 5° to 80° vertically, providing a broader viewing area. The fixed-focal lens has an F2.0 aperture and has a field of vision of 74° horizontally, 41° vertically, and 88° diagonally, making it ideal for room surveillance. Enhanced human detection ensures accurate alerts by identifying real movement instead of random motion. The Dahua DH-IPC-H5AE 5MP portable wifi camera supports H.265 video compression, which optimizes bandwidth while keeping high-quality images. It records at 30 frames per second and offers quality options of 5MP and nHD (640 × 360 pixels). Users may choose between Auto, Color, and Black & White modes, with DWDR (Digital Wide Dynamic Range) adjusting image exposure for crisp images in contrasting settings. This Dahua DH-IPC-H5AE Security Camera has a built-in microphone and speaker that supports two-way conversation and G.711a compression for efficient sound quality. Connectivity is versatile, with an RJ-45 network interface for conventional access and Wi-Fi (IEEE 802.11b/g/n/ax at 2.4 GHz) for wireless convenience. Storage options include a micro SD card with a capacity of up to 256GB, providing plenty of recording space. The Surveillance camera smoothly connects with the DMSS management software, allowing remote access via iOS and Android mobile clients. Power efficiency is optimized with a 5V DC supply, consuming as low as 1.9W during basic operation and up to 4W with live monitoring, IR, and pan-tilt rotation. Certified for CE compliance, this security device operates reliably within a temperature range of –10°C to 45°C and can withstand humidity levels of up to 95% (non-condensing), making it resilient for various indoor conditions. Whether for home security or office monitoring, this Dahua DH-IPC-H5AE Wi-Fi camera delivers intelligent surveillance with seamless control and real-time alerts.

Warranty Policy

  • Warranty Period: 1 Year Official Warranty

  • Covers manufacturing defects under normal indoor usage

  • Does not cover physical damage, burn damage, liquid damage, voltage fluctuation damage, or unauthorized repair

  • Warranty service is subject to Dahua brand policy and authorized service center terms

  • Accessories (adapter, cable) are covered as per manufacturer policy
