Dahua DH-IPC-HFW3239TL1-A-IL-BT 2MP Bullet Network Camera

(0 Reviews)

Key Features

Model: DH-IPC-HFW3239TL1-A-IL-BT
Image Sensor: 1/2.8" CMOS
Resolution: Max 2MP (1920 × 1080) @1- 25/30 fps.
Focal Length: 2.8 mm;3.6 mm; 6 mm, Aperture: F1.6, IR Distance: 50m
Features: Motion detection, video tampering, IP67, Smart Codec, Abnormality Detection

Call for Price

Brand:

Specification

Camera
Image Sensor	1/2.8" CMOS
Resolution	1920 (H) × 1080 (V)
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Day & Night	Auto(ICR)/Color/B/W
Min. Illumination	0.005 lux@F1.6 (Color,30 IRE) 0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on)
SNR (dB)	> 56 dB
Angle Adjustment	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm;3.6 mm; 6 mm
Aperture	F1.6
Field of View	2.8 mm: H: 104°; V: 55°; D: 124° 3.6 mm: H: 88°; V: 44°; D: 105° 6 mm: H: 54°; V: 29°; D: 63°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) 6 mm: 2.6 m (8.53 ft)
DORI Distance	Lens - 2.8 mm Detect - 44.1 m(144.69 ft) Observe - 17.7 m(58.07 ft) Recognize - 8.8 m(28.87 ft) Identify - 4.4 m(14.44 ft) Lens - 3.6 mm Detect - 58.9 m(193.24 ft) Observe - 23.6 m(77.43 ft Recognize - 11.8 m(38.71 ft) Identify - 5.9 m(19.36 ft) Lens - 6 mm Detect - 85.5 m(280.51 ft) Observe - 34.2 m(112.20 ft) Recognize - 17.1 m(56.10 ft) Identify - 8.6 m(28.22 ft)
Illuminator
IR LEDs	2 (IR LED); 2 (Warm light)
IR Distance	IR illumination distance is 50 m and warm light distance is 50 m.
Illuminator Control	Auto; manual
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Resolution	1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Main Stream	1920 × 1080@1–25/30 fps
Sub Stream	704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Stream Capability	2 streams
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
Gain Control	Auto; manual
Noise Reduction	3D NR
Region of Interest (ROI)	Yes (4 areas)
Mirror	Yes
Privacy Masking	4 areas
Storage
Network Storage	FTP
Network
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability	ONVIF(Profile S); CGI; P2P
API	Yes
User/Host	6 (Total bandwidth: 36 M)
Client	IOS; Android
Web Browser	IE Chrome Firefox
App	Smart PSS; DSS; DMSS
Interface
Network Interface	RJ-45 (10/100 Base-T)
Alarm
General Alarm	Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exceptio
Environment
Operating Temperature	–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity	≤ 95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Water Protection	IP67
Power
Power Supply	12V DC/PoE (802.3af)
PoE Standard	802.3af
Power Consumption	Basic power consumption: 1.3 W (12 VDC); 2.1 W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.9 W (12 VDC); 3.9 W (PoE)
Physical Information
Casing Material	Plastic
Dimension	197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H)
Weight	Net Weight 0.31 kg (0.68 lb) Gross Weight 0.45 kg (0.99 lb)
Warranty Information
Warranty	1 Year

Product Details

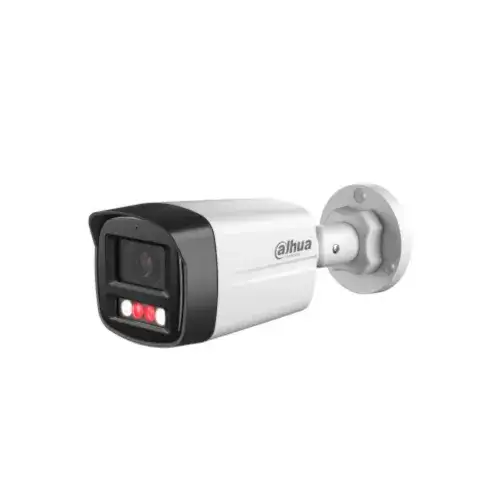

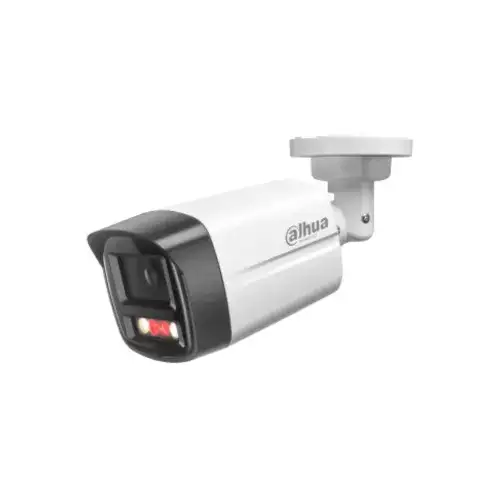

Dahua DH-IPC-HFW3239TL1-A-IL-BT 2MP Bullet Network Camera

The Dahua DH-IPC-HFW3239TL1-A-IL-BT 2MP Bullet Network Camera is an entry‑level smart surveillance solution built for reliable indoor and outdoor monitoring. Featuring a 1/2.8” CMOS image sensor, it delivers 2MP resolution (1920 × 1080) at 25/30fps with clear, high‑definition video even in low‑light conditions. Compact yet powerful, this Dahua Bullet IP Camera is ideal for homes, offices, and commercial spaces requiring dependable security coverage.

Night Vision and Smart Dual Light

Equipped with Smart Dual Light technology, the Dahua DH-IPC-HFW3239TL1-A-IL-BT ensures full‑color imaging at night. It features IR LEDs and warm light illumination, both reaching up to 50 meters. The camera intelligently switches between infrared and warm light modes, providing clear visibility in complete darkness while reducing false alarms.

Performance and Storage

The camera supports H.265/H.264 compression with ultra‑low bit rates, saving bandwidth and storage space. It offers ROI encoding and Smart H.264+/H.265+ for flexible coding in different environments. With 128MB ROM and 128MB RAM, plus support for Smart NVR integration, the Dahua Bullet Network Camera ensures smooth recording and playback.

IP67 Protection

Built with a metal + plastic casing, the Dahua DH-IPC-HFW3239TL1-A-IL-BT is designed for outdoor use. It carries an IP67 weatherproof rating, protecting against dust and rain, and operates reliably in temperatures from –40°C to +60°C. This makes it suitable for perimeter monitoring, parking lots, and industrial sites.

Smart Detection Features

The camera integrates intelligent functions such as human detection, motion detection, video tampering, audio detection, and illegal access alerts. It also supports DWDR, 3D noise reduction, HLC, BLC, and privacy masking, ensuring clear footage in challenging lighting conditions. Combined with digital watermarking, the Dahua Bullet IP Camera enhances security and authenticity of recordings.

Audio and Connectivity

The Dahua DH-IPC-HFW3239TL1-A-IL-BT includes a built‑in microphone for one‑way audio recording, improving situational awareness. Connectivity options include an RJ‑45 Ethernet port with PoE (802.3af), simplifying installation with a single cable for power and data. It supports multiple protocols including IPv4/IPv6, HTTP, TCP, UDP, RTSP, FTP, and ONVIF, ensuring compatibility with modern surveillance systems.
