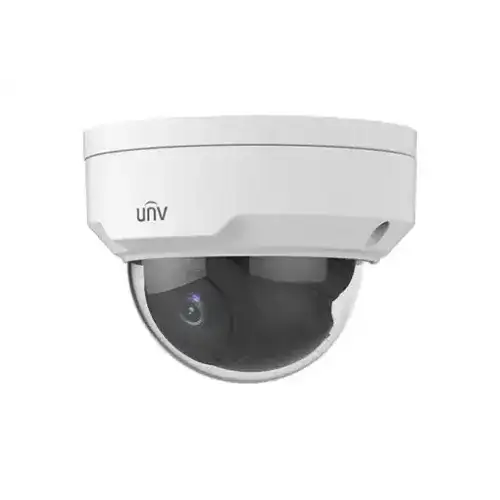

Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network IR Dome Camera

Key Features

  • Model: IPC322LB-SF28-A
  • Image Sensor: 1/2.8", Progressive scan, CMOS
  • Resolution: Max. 2MP (1920 × 1080)@30/25 fps
  • Lens: 2.8mm, Aperture: F2.0, IR Distance: 30 meters
  • Features: PoE, DWDR, 2D/3D DNR, Smart Detection

Brand: Uniview

Specification

Specification

Camera Feature
Image Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
Effective Pixels2 Megapixel
IR DistanceUp to 30m (98ft) IR range
Lens
Angle of ViewAngle of View (H): 106.7°
Angle of View (V): 57.1°
Adjustment angle: Pan: 3° ~ 360°,Tilt: 0° ~ 75°
Physical Specification
DimensionΦ109 x 81mm (Ø4.3” x 3.2”)

Weight0.35kg (0.77lb)
PowerDC 12V±25%, PoE (IEEE 802.3af)
InterfacePower Interface: Ø 5.5mm coaxial power plug
Network: 1 * RJ45 10M/100M Base-TX Ethernet
OthersWeatherproof IP67
Warranty
Warranty1 Year Warranty

Product Details

Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network IR Dome Camera

The Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network IR Dome Camera has a 2MP, 1/2.8" CMOS sensor and a fixed 2.8mm lens that enable it to take clear, fine-grained photos at 1080P resolution. It supports the Ultra 265, H.265, and H.264 video compression standards, which can reduce bandwidth and storage requirements by up to 95%. In order to improve the image quality in low-light and noisy conditions, the Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network Camera also supports Smart IR, day/night capabilities, and 2D/3D DNR. It includes integrated IR illumination that can enable a night vision range of up to 30 meters. It supports PoE power supplies, which makes installation easier and lowers the cost of wiring. The Uniview IPC322LB-SF28-A is weatherproofed and vandal-resistant, with an IP67-rated weatherproof housing and an IK10-rated vandal-resistant dome. Uniview IPC322LB-SF28-A 2MP Vandal-resistant Network IR Dome Camera features 2-axis adjustment, allowing you to change the camera angle easily.

Warranty Policy

Warranty Period: 1 Year

Warranty Coverage

  • Manufacturing defects

  • Internal hardware malfunction under normal operating conditions

  • Factory related component failure

Warranty Exclusions

  • Physical damage due to impact or misuse

  • Damage caused by improper installation

  • Electrical damage from voltage fluctuation or lightning

  • Water damage due to incorrect mounting

  • Unauthorized repair or modification

Warranty Claim Process

  1. Original purchase invoice required.

  2. Product must be submitted for inspection.

  3. Evaluation completed within 3 to 7 working days.

  4. Repair or replacement provided as per manufacturer policy.
