Jovision JVS-H320C 3MP Pan/Tilt Wi-Fi Camera

Key Features

  • Model: JVS-H320C
  • Image Sensor: 1/2.9" CMOS Sensor
  • Resolution: 2304x1296
  • Effective Pixels: 3.0MP
  • Fill Light Distance: IR 40 Meters

Brand: Jovision

Specification

Specification

General Information
Image Sensor1/2.9" CMOS Sensor
Effective Pixels3.0MP
Max. Resolution2304x1296
Frame Rate25fps
Lens3.6mm
Field of ViewH: 78.6°, V: 42°, D: 92.4°
Min. Illumination0.01Lux (light ON)
Video CompressionH.264/H.265(Default)
Audio Input / OutputBuilt-in Mic and Speaker
DNRDigital 3D Noise Reduction
WDRDWDR Support
Smart AlarmEmail Alarm, Client Alarm
ButtonReset Button
Storage TypeSupport SD Card(256G),Cloud Storage
Mobile AppSupport iOS/Android
OthersUp to 13 Users
IP66 Waterproof
Network & Connectivity
Wireless NetworkYes
Power
Power SupplyDC12V/2A
Power Consumption<6W (During Day); <10W (At Night)
Physical Specification
ColorBlack and white
Dimension135x135x95mm
Weight450g
Operating TemperatureWorking Temperature: -20°C ~ 60°C
Working Humidity: 10% ~ 90% Rh
Warranty Information
Warranty01 Year Warranty

Product Details

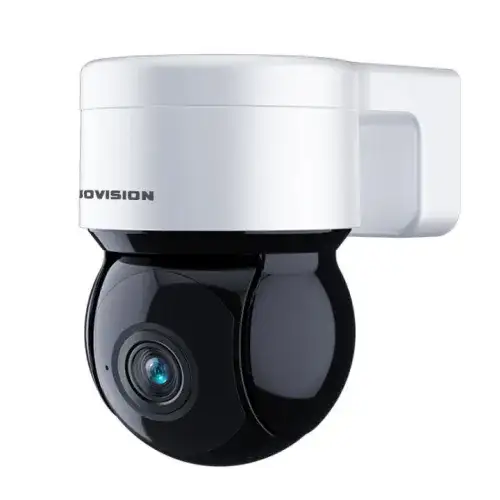

Jovision JVS-H320C 3MP Pan/Tilt Wi-Fi Camera

The Jovision JVS-H320C 3MP Pan/Tilt Wi-Fi Camera is a feature-rich, high-definition surveillance camera engineered for both residential and commercial security needs. Equipped with a high-quality 1/2.9" CMOS image sensor, the Jovision JVS-H320C 3MP Camera delivers ultra-clear video at a maximum resolution of 2304x1296, supported by 3.0MP effective pixels for enhanced clarity and detail. It's a 3.6mm lens with an M12 interface that provides a wide angle of view—78.6° horizontal, 42° vertical, and 92.4° diagonal, ensuring expansive coverage of monitored areas. Ideal for both day and night operation, the Jovision JVS-H320C Wi-Fi Camera features advanced infrared night vision technology with a powerful IR fill light distance of up to 40 meters, maintaining visibility even in complete darkness. This versatile Jovision JVS-H320C IP Camera supports dual streaming with a main stream bitrate ranging from 128Kbps to 4096Kbps and a sub-stream from 68Kbps to 1024Kbps, offering flexible video quality and efficient bandwidth management. The camera boasts a rugged IP66 waterproof rating, making it suitable for outdoor installations in harsh weather conditions. It operates reliably on DC12V/2A power, with low power consumption—less than 6W during the day and under 10W at night, ensuring energy efficiency. Compact in design with dimensions of 135x135x95mm and a weight of just 450g, the Jovision JVS-H320C 3MP Pan/Tilt Wi-Fi Camera offers seamless pan and tilt functionality, enabling comprehensive area surveillance and remote control via wireless connectivity. Whether for home, office, or industrial monitoring, this intelligent security solution combines advanced optics, durable build quality, and smart features to provide round-the-clock peace of mind.

Warranty Policy

  • Product Warranty: 01 Year Official Warranty

  • Warranty covers only manufacturing defects.

  • Physical damage, water damage, burn, lightning, power surge, or improper installation are not covered.

  • Warranty service requires valid purchase invoice.

  • Adapter and accessories are excluded unless mentioned by manufacturer policy.
