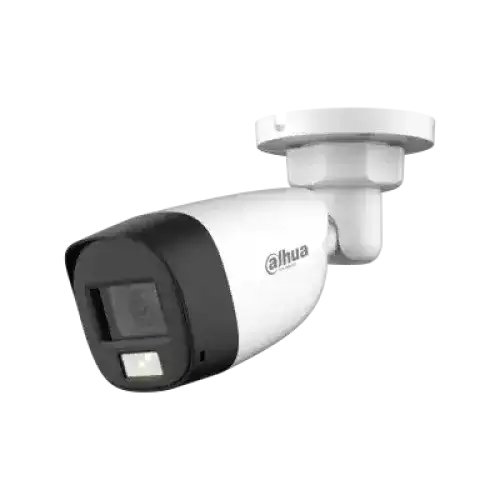

Dahua HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera

(0 Reviews)

Key Features

Model: HAC-HFW1200CL-IL-A
Image Sensor: 2 MP CMOS, Max. 30 fps@1080p
Lens: 3.6 mm fixed lens (2.8 mm optional)
IR Distence: 20m illumination Distance, Built-in Microphone
IP67 Water Resentence, CVI/CVBS/AHD/TVI switchable

Quantity:

Order on WhatsApp Call for order

Brand:

Specification

General
Casing Plastic
Dimensions 163.4 mm × 69.7 mm × 70 mm (6.43" × 2.74" × 2.76")
Weight 0.18 kg (0.40 lb)
Pan/Tilt/Rotation Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Operating Conditions Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing
Storage Conditions Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing
Power Supply 12 VDC ± 30%
Power Consumption Max 2.6W (12 VDC, IR on)
Camera
Image Sensor 2 MP CMOS
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination 0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
IR Distance IR: 20 m (65.62 ft)
Warm light: 20 m (65.62 ft)
IR On/Off Control Auto
IR LEDs 2 (Warm light);2 (IR light)
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm;3.6 mm
Max Aperture F2.0
Angle of View 2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°
Close Focus Distance 2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)
Video
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC; HLC; DWDR
Gain Control Auto
Noise Reduction 3D NR
Interface
Audio Interface 1 channel
Video Interface Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Warranty
Warranty 1 year

Product Details

Dahua HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera

The Dahua DH-HAC-HFW1200CLP-IL-A Smart Dual Light Audio Bullet CC Camera has a 2 MP CMOS image sensor with a maximum resolution of 1920 × 1080. It captures clear and detailed video footage at a maximum frame rate of 30 fps. The Smart Dual Light technology provides 20 meters of illumination distance with both infrared and warm light options, ensuring good visibility in a variety of lighting circumstances. The Dahua DH-HAC-HFW1200CLP-IL-A 2MP Bullet CC Camera's built-in microphone improves security by providing clear audio to accompany the video feed. This camera has a wide field of vision because to its fixed 3.6 mm lens, but an extra 2.8 mm lens is available for even greater coverage. The Dahua DH-HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera is designed to be versatile, supporting numerous video formats like as CVI, CVBS, AHD, and TVI, making it suitable for a wide range of surveillance systems. It has a progressive scanning mechanism and an electronic shutter speed range of 1/25 s to 1/100000 s for PAL and 1/30 s to 1/100000 s for NTSC, resulting in smooth video capture. The Dahua DH-HAC-HFW1200CLP-IL-A 2MP Audio CC Camera's low illumination capabilities, down to 0.001 lux in B/W mode and 0 lux with the illuminator turned on, enable for clear video even in near-complete darkness. The Dahua DH-HAC-HFW1200CLP-IL-A also contains advanced image enhancement technologies such as 3D noise reduction (3D NR), backlight compensation (BLC), highlight compensation (HLC), and digital wide dynamic range (DWDR), which ensures optimal image quality even in demanding conditions. The Dahua DH-HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera has an IP67 rating, which means it is resistant to dust and water and can be used outside. It provides a wide range of angle adjustments for precise placement and a power consumption of only 2.6 W.
