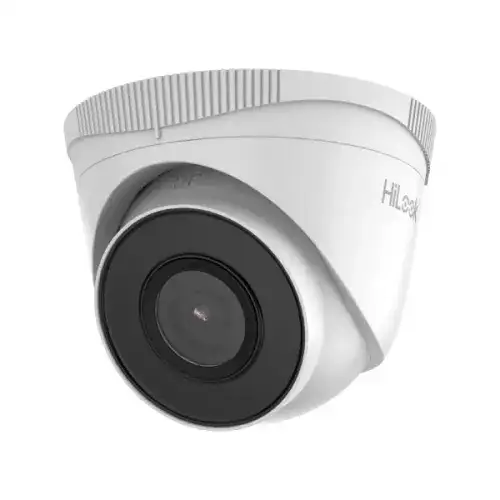

Hikvision HiLook IPC-T221H 2MP Dome IP Camera

Key Features

  • Model: HiLook IPC-T221H
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Resolution: Max. 1920 × 1080
  • Lens: 2.8mm, Aperture: F2.0, IR Distance: 30 meters
  • Features: Support PoE, DWDR, Motion Detection

Brand: Hikvision

Specification

Specification

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Resolution1920 × 1080
Shutter Speed1/3 s to 1/100, 000 s
Day & NightIR cut filter
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens TypeFixed focal lens
Lens MountM12
Focal Length2.8 mm
4 mm
ApertureF2.0
Field of View2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°
Iris TypeFixed
Illuminator
IR LEDsSmart Supplement Light: IR
IR DistanceUp to 30 m
IR Wavelength850 nm
Video
Video CompressionMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Bit Rate32 Kbps to 8 Mbps
Day/NightAuto, Schedule
WDRDigital WDR
Noise Reduction3D DNR
MirrorYes
Privacy MaskingYes
Network
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Interface
Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Environment
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity95% or less (non-condensing)
Water ProtectionIP67
Power
Power Supply12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Physical Information
DimensionØ110 mm × 93.2 mm (Ø4.3" × 3.7")
WeightApprox. 320 g (0.7 lb.)
Warranty Information
Warranty1 Year

Product Details

Hikvision HiLook IPC-T221H 2MP Dome IP Camera

The Hikvision HiLook IPC-T221H 2MP Dome IP Camera is an advanced surveillance device with an outstanding 2 MP resolution. Using effective H.265+ compression technology, this camera ensures that video files are smaller without sacrificing quality, making it excellent for storage and bandwidth management. The Hikvision HiLook IPC-T221H Dome IP Camera performs well in low-light situations thanks to its Digital Wide Dynamic Range (DWDR) technology, which allows for crisp imaging even with strong backlight. The Hikvision HiLook IPC-T221H 2MP Dome IP Camera has an IP67 classification, which means it is water and dust-proof, ensuring reliable performance in a variety of environments. Power over Ethernet (PoE) technology simplifies installation by eliminating the need for extra power sources. The Hikvision HiLook IPC-T221H IP Camera has a 1/2.7" progressive scan CMOS image sensor, a maximum resolution of 1920 × 1080, and a minimum illumination of 0.01 Lux in color and 0 Lux in black and white, plus infrared capabilities. The adjustable pan, tilt, and rotation angles provide for greater placement freedom, while the fixed focal lens's 2.8 mm focal length provides a 105-degree horizontal field of view. The Hikvision HiLook IPC-T221H 2MP Dome IP Camera has multiple video streams. The mainstream can give 25 fps at 1920 × 1080 quality. It also supports a variety of network protocols, allowing for simple connection with current systems. The camera can be accessed via a variety of systems, including iVMS-4200 and Hik-Connect, with support for up to 32 users. The Hikvision HiLook IPC-T221H 2MP Dome IP Camera's image parameters, such as saturation, brightness, and contrast, can be modified via client software or a web browser to ensure the best image quality. This Hikvision HiLook IP Camera, which includes motion detection and video tampering alerts, is a trustworthy solution for comprehensive surveillance needs.
