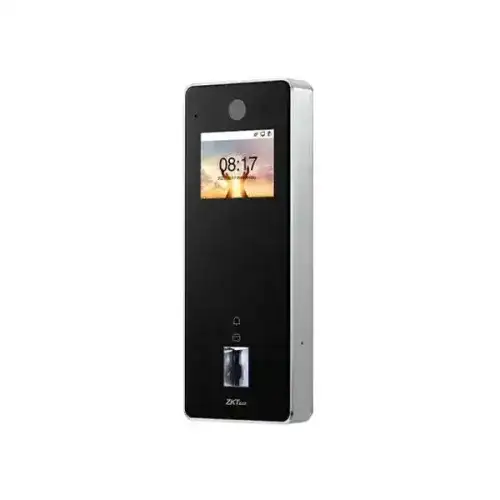

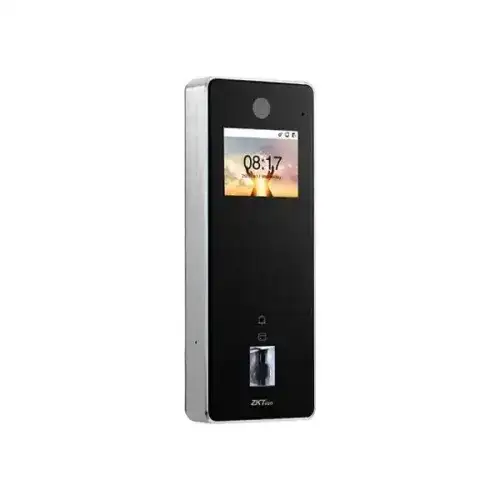

ZKTeco F35 Fingerprint Time Attendance and Access Control Terminal

(0 Reviews)

Key Features

Model: F35
2.4"@ TFT Color LCD Screen (720*1280)
Fingerprint capacity: 10,000 (1:N)
Card Capacity: 10,000 (1:N), Without Adapter
Authentication Method: Fingerprint / Card / Password (Physical Touch Keypad )

Quantity:

Order on WhatsApp Call for order

Specification

Main Features
Fingerprint Capacity	10,000 (1:N)
Face Capacity	N/A
ID Card Capacity	10,000 (1:N)
Display	2.4"@ TFT Color LCD Screen (720*1280)
Communication	TCP/IP1 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz Wiegand (Input & Output)1 RS485: ZKTeco RS485 1 Aux Inputs 1, Aux Outputs 1, Electric Lock1, Door Sensor1, Exit Button1, Alarm1, Doorbell1
Standard Functions	Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input)
Interface	RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader)
Others	Transaction Capacity: 500,000 Biometric Algorithm: ZKFingerprint V10.0 Support Card Type: D Card@125 kHz (Standard) Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency) Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency) Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency) Ingress Protection Rating: IP65 (waterproof and dustproof ) IK04 (Vandal Resistant)
Physical Specification
Dimension	195 mm75 mm25.35 mm (LWH)
Weight	Gross Weight: 1.13 Kg Net Weight: 0.52 Kg
Power Supply	Power Supply: DC 12V 3A Operating Temperature: -5℃ to 55℃ (23 ℉ to 131 ℉ ) Operating Humidity: 10% to 90% RH (Non-condensing)
Others	Housing Material: Aluminium Alloy
Manufacture Warranty
Warranty	01 year warranty

Product Details

ZKTeco F35 Fingerprint Time Attendance and Access Control Terminal

Smart Hybrid Attendance & Access Ecosystem

Instead of using the F35 just for simple attendance logging or door access, it can be integrated into a hybrid smart ecosystem:

Mobile App Integration
- Employees can link their fingerprint ID with a mobile app.
- The app shows real-time check-in/check-out records, remaining leave balance, and work hours.
- Push notifications alert them if they forget to check out.
AI-Based Productivity Dashboard
- Attendance data from F35 syncs with a cloud system.
- Generates smart reports like late arrival trends, overtime analysis, peak entry times, etc.
- Managers can view performance insights visually (charts, heatmaps).
Multi-Mode Authentication
- Combine fingerprint + QR code + face recognition (via mobile) for higher security.
- Useful for organizations with mixed staff (onsite + remote).
Energy-Saving Access
- When the last employee checks out, the terminal signals the building automation system to turn off lights, AC, or lock specific zones.
- Helps reduce unnecessary energy consumption.
Visitor Management Upgrade
- Visitors register fingerprints temporarily at reception.
- F35 allows controlled entry only to assigned areas and auto-revokes after the visit.
- Enhances security without extra manpower.
Emergency Mode
- During emergencies (fire, earthquake), the system auto-unlocks doors for evacuation but still logs who exited for safety verification.
