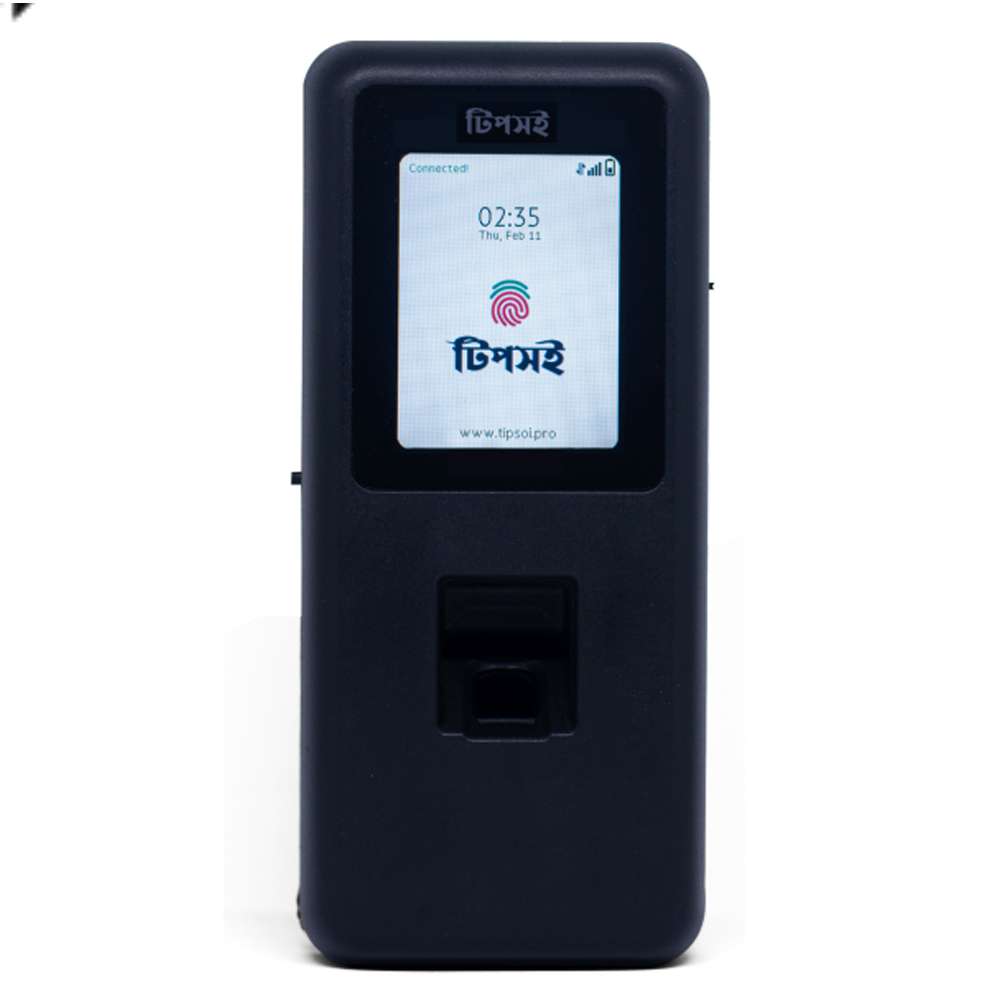

Tipsoi TF-80 Smart

Product Details

Specifications

System Specifications:

Brand: Tipsoi

Model: TF-80

Authentication Method: Fingerprint, Card

Country of Origin: Bangladesh

Country of Assembly: Bangladesh

Display: 2.8” LCD Color Display

Fingerprint Sensor: Optical Fingerprint Sensor

Fingerprint Capacity: 3,000

Fingerprint Recognition: FAR: 0.001% || FRR: 0.01%

Fingerprint Recognition Time: 1:1 < 22ms || 1:N < 320ms (with 3000 FPs)

RFID Capacity: 6,000, 10,000, 20,000, 60,000 (On request)

RFID Read Distance: 1-3 cm

RFID Card Support: 125 KHZ RFID Cards || HID, Mifare (On request)

RFID Slave Device Support: Yes

Log Storage Capacity: 500,000

Communication: SIM Based (GSM 900/1800 MHz) || Always connected

Attendance Log: Real-Time Sync with Cloud Server

Battery Capacity: 2000 mAh Li-ion

Battery Backup: 4 hours

Power Supply: 9V-12V 2A

Power Usage: 2W (standby) || 18W (peak)

Audio: Buzzer

Access Control Support: Magnetic Door Lock || Turnstile Barrier

Operating Temperature: 0°C - 45°C

Weight: < 500g

Dimensions: 195 x 95 x 40 mm (L x W x D)

Warranty: 01 Year
