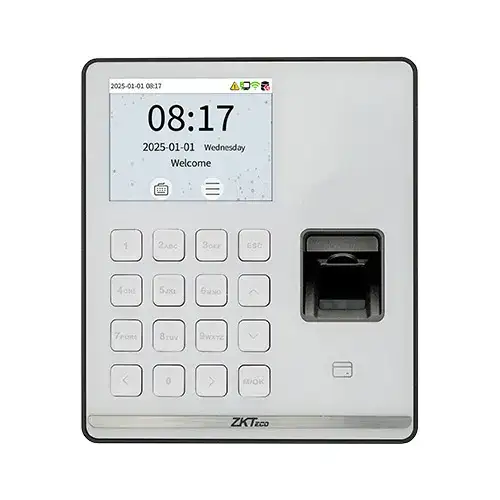

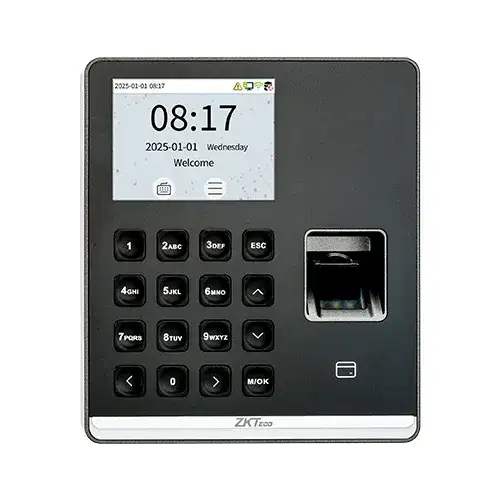

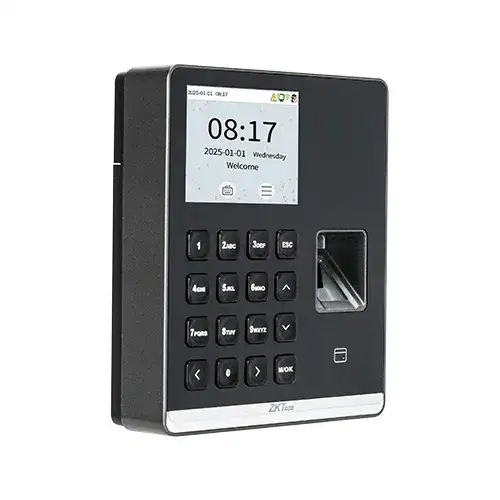

ZKTeco SenseFP M1 Biometric Time & Attendance Access Control Terminal

Performance & Capacity:

• Fingerprint Capacity: 500 users (1:N, standard)

• Face Capacity: 500 users (1:N, standard)

• ID Card Capacity: 500 cards (1:N, standard)

• Record Capacity: 100,000 transactions (1:N, standard)

Display & Interface:

• 2.8-inch TFT Color LCD (320×240) for intuitive navigation

• Supports multiple authentication methods: fingerprint, card, and password via physical keypad

• T9 keyboard input for easy user management

Connectivity & Communication:

• ID Card (125 kHz, standard), IC Card (13.56 MHz, optional)

• Online firmware upgrade supported

• Compatible with ZKBio Zlink mobile and cloud-based software

Design & Build:

• Compact dimensions: 135.5 × 118.23 × 35.95 mm, weight: 0.245 kg

• Wall-mountable, compatible with standard Asian gang-boxes

• Durable casing in black and white

• ZK Optical fingerprint sensor for high-accuracy recognition

Additional Features:

• Biometric Algorithm: ZKFingerprint V13.0

• Linux-based operation system

• RAM: 8MB; ROM: 16MB

• Speaker: 8Ω @1W for clear audio alerts

• Power Supply: DC 5V 2A

• Standard functions: DST, up to 14-digit User ID, record query, automatic status switch, multiple authentication methods

Certifications & Warranty:

• ISO14001, ISO9001, CE, FCC, RoHS certified

• 1-year manufacturer warranty

ZKTeco SenseFP M1 Biometric Time & Attendance Terminal

The ZKTeco SenseFP M1 is a compact, high-performance biometric terminal designed for efficient workforce management and secure access control. Perfect for offices, schools, small businesses, and other secure facilities, it combines precision, speed, and reliability in one sleek device.

Featuring a 2.8-inch TFT color LCD with 320×240 resolution, the SenseFP M1 provides a clear and user-friendly interface. It operates on a stable Linux system and supports multiple authentication methods, including fingerprint, RFID card, and password, allowing flexible and secure access management. The ZK optical fingerprint sensor ensures fast and accurate verification in under 1.5 seconds.

The terminal supports up to 500 fingerprint templates, 500 ID cards, and 500 user records, with a transaction capacity of 100,000 logs, making it ideal for small to medium-sized teams. Built with 8MB RAM, 16MB ROM, and a 16-key physical keypad, it delivers smooth operation, secure data storage, and easy user input.
