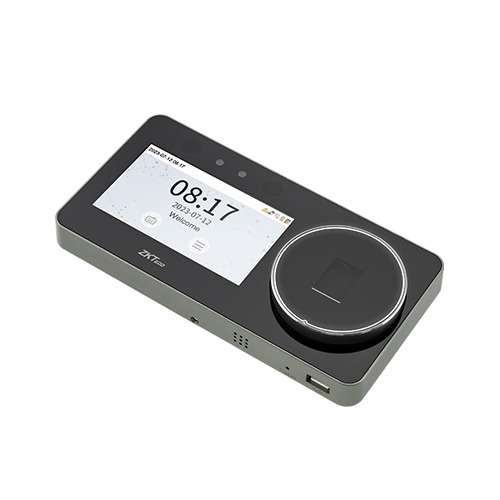

ZKTeco FaceDepot 4A Access Control Terminal
- Model: FaceDepot 4A
- Face / Fingerprint / Card / Password Authentication
- Fingerprint Capacity: 10,000 (1:N)
- 4.3" Touchscreen with 2MP WDR Binocular Camera
- Linux OS with Wi-Fi / 4G Connectivity
Specification
| Display | |
|---|---|
| Display | 4.3" TFT Color Touch LED Screen (480 × 800) |
| Camera | |
| Camera | Binocular Camera @ 2MP WDR |
| Operation System | |
| Operating System | Linux |
| Hardware | |
| CPU | Quad Core @ 1.2 GHz |
| RAM | 1 GB |
| ROM | 8 GB |
| Speaker | 8 Ohm @ 1W |
| Supplement Light | No |
| Fingerprint Sensor | In-Glass Fingerprint |
| Biometric Authentication | |
| Biometric Authentications | Fingerprint / Face / Card / Password (Virtual Keypad) |
| Capacity | |
| Fingerprint Capacity | 10,000 (1:N) (Standard) |
| User Capacity | 10,000 (1:N) (Standard) |
| Face Capacity | 10,000 (1:N) (Standard) |
| Transaction Capacity | 100,000 (1:N) (Optional for Capacity Expansion: 200,000) |
| Authentication Performance | |
| Max. User Password Length | 8 Digits |
| Biometric Verification Speed | Less than 0.35 second (Facial Recognition) Less than 0.5 second (Fingerprint Recognition) |
| Touchless Biometric Recognition Distance | 30 cm to 200 cm @ Face |
| False Acceptance Rate (FAR) | FAR ≤ 0.01% (Facial Recognition) FAR ≤ 0.0001% (Fingerprint) |
| False Rejection Rate (FRR) | FRR ≤ 0.02% (Facial Recognition) FRR ≤ 0.01% (Fingerprint) |
| Biometric Algorithm | ZKFace V6.0 ZKFingerprint V10.0 |
| Card | |
| Card Type |
ID Card @ 125 kHz (Optional) HID Prox @ 125 kHz (Optional) IC Card @ 13.56 MHz (Optional) Optional Multi-Tech Module: Module 1: ID & IC & DESFire EV1 / EV2 (125 kHz & 13.56 MHz Dual Frequency) |
| Mobile Communication | |
| LTE FDD | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 |
| LTE TDD | B38 / B39 / B40 / B41 |
| UMTS | B1 / B2 / B4 / B5 / B6 / B8 / B19 |
| GSM | B2 / B3 / B5 / B8 |
| Standard Functions | |
| Functions | WorkCode, ADMS, DST, T9 Keyboard (Input), Photo Capture, Event Photo Capture, 14-Digit User ID, Schedule Bell, Record Query, Tamper Switch Alarm, Photo ID, Multiple Verification Methods, External Printer, HTTPS / SSH Backend Access, 12V Output |
| Optional Functions | |
| Optional Functions | Wi-Fi, 4G, Backup Battery, PoE |
| Power Supply | |
| Power Supply | DC 12V 3A PoE: IEEE 802.3af Backup Battery |
| Backup Battery | |
| Battery Capacity | 2000 mAh (Lithium Battery) |
| Max. Operating Hours | 2 Hours |
| Max. Standby Hours | 2 Hours |
| Charging Time | 2.5 to 3 Hours |
| Operating Environment | |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Physical Specifications | |
| Dimensions | 193.00 × 100.00 × 32.40 mm (L × W × H) |
| Gross Weight | 0.447 Kg |
| Software | |
| Supported Software | ZKBioTime / ZKBio CVAccess (T&A Module) |
| Installation | |
| Installation | Wall-mount |
Product Details
ZKTeco FaceDepot 4A Access Control Terminal
The ZKTeco FaceDepot 4A is a Linux-based hybrid biometric time and attendance terminal featuring ZKTeco's advanced Visible Light Facial Recognition technology. It uses deep learning algorithms to provide fast and accurate facial recognition from a distance of approximately 0.3 to 2 meters, including operation in dark and low-light conditions. The terminal offers enhanced pose angle tolerance and anti-spoofing technology to improve facial authentication security and recognition performance in different environments. FaceDepot 4A also combines facial recognition with ZKTeco's biometric authentication technologies and supports multiple verification methods to meet different access control and attendance requirements. With versatile Wi-Fi and 4G connectivity, the device provides flexible communication options for modern biometric systems. Its hybrid biometric functionality makes it suitable for employee time attendance, access control, and identity verification applications in offices, businesses, institutions, and other professional environments. With visible light facial recognition, deep learning technology, enhanced anti-spoofing, multiple verification methods, and flexible wireless connectivity, the ZKTeco FaceDepot 4A Access Control Terminal is a practical solution for secure and efficient biometric attendance and access management.
Buy ZKTeco FaceDepot 4A Access Control Terminal from TechBox
In Bangladesh, you can buy the original ZKTeco FaceDepot 4A Access Control Terminal from TechBox. We offer a wide range of ZKTeco facial recognition terminals, biometric attendance machines, fingerprint devices, access control systems, and time attendance solutions for offices, businesses, and institutions. Order online from TechBox and get the ZKTeco FaceDepot 4A at a competitive price with reliable service.
