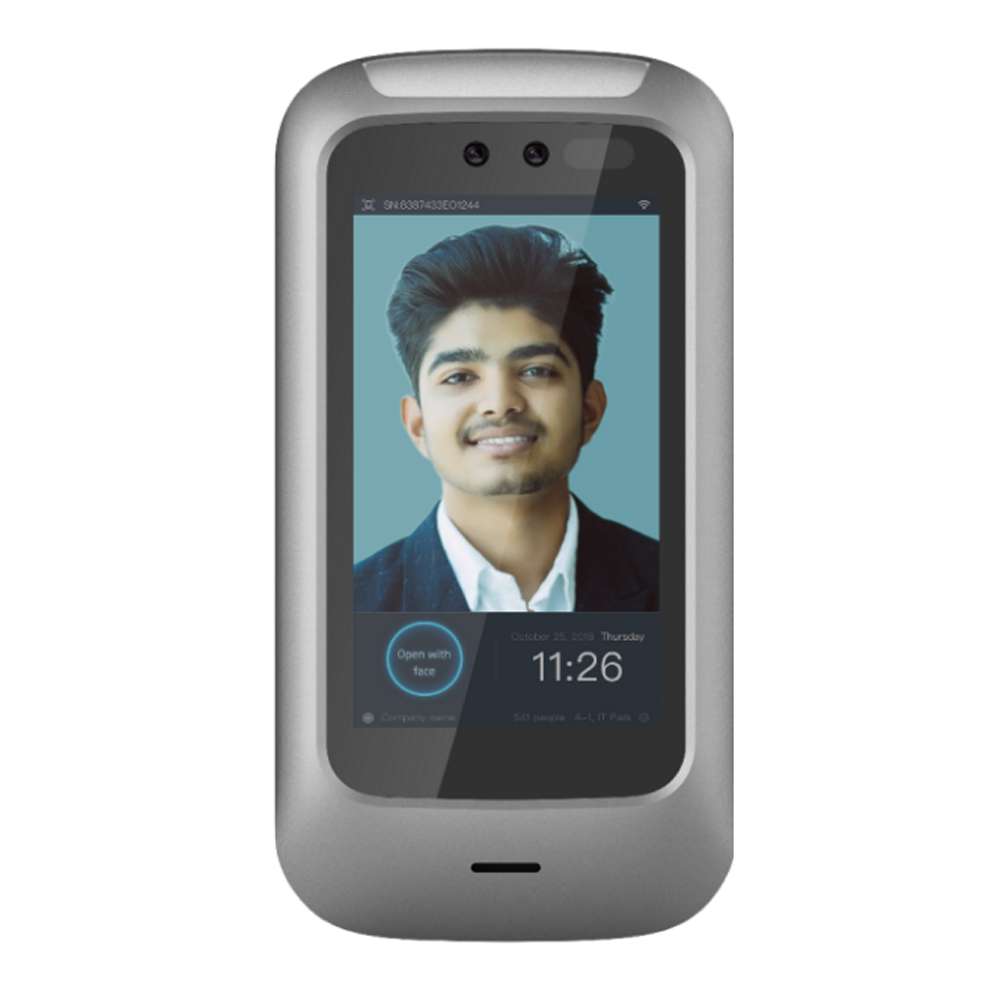

Tipsoi Fastface 5 Lite

Product Details

Specifications

Brand Fastface

Model D-505

Authentication Method Face, Card

Country of Origin China

Country of Assembly China

Dimension

(without support) 185 * 93.78 * 22.50 mm

CPU Dual Core ARM Cortex-A7, 900 MHz

RAM 512 MB

ROM 4 GB

OS Linux

Display 5-inch capacitive touchscreen

Language English

Face Capacity 10,000 (Max)

Card Capacity 10,000 (Max)

Log Capacity 50,000 (MAX)

Camera 2 (Infrared and RGB)

Infrared Light Yes

WDR 120dB

Shutter Type Electronic Rolling Shutter

Live Face Detection Yes (0.3 - 1.5m)

FAR/ FRR for Face Recognition 0.001/ 1(%)

Matching Speed ≤ 0.5 sec

Intelligent Update Yes

Face Recognition Mode 1:1, 1:N

RFID Card Standard MIFARE Card, 13.56 MHz

QR Code Supported

Interface RS232, Wiegand 26/34, TTL, USB Type-A

Communication WiFi, LAN, TCP/IP

Relay Output Yes

Door Sensor Yes

Exit Door input Yes

Alarm Key Yes

Alarm Door Yes

Voice Output Yes

Clock RTC Yes

Power DC 12V/2A

Power Consumption Max. 15W

Temperature -10℃ ～ +50℃

Working humidity 10% ～ 90%

API Functionalities

JSON data format (Lightweight rest API)

Push/Pull dual data transfer Mechanism

Customer platform Database ID can be used as Inovace

Platform User ID to map between two platforms

Central/Single API for any number of devices and the devices

or projects can be separated by API tokens.

Chunk-wise data transfer facility for optimized user-end data

processing.

Device & API Management

Cloud Platform

Cloud-based web panel for device management.

Central database management from multiple locations.

Real-time Immediate Data.

High data security and privacy ensured by end-to-end encryption

Easy one-time enrollment.

Bulk user profile creation with Excel file

Device data cloning to another device.

Fingerprint-template management through web panel.

MQTT broker ensures seamless data availability.
