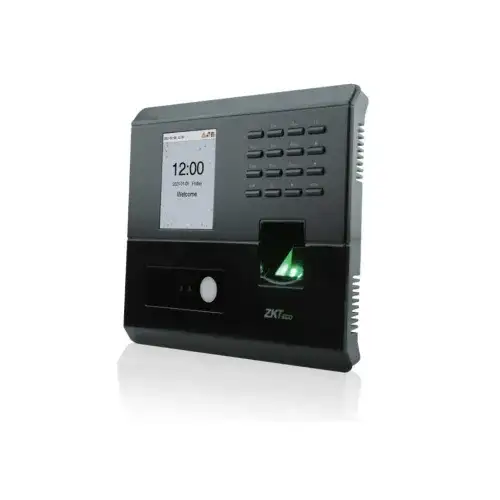

ZKTeco MB10-VL Hybrid Biometric Time & Attendance and Access Control Terminal

Performance & Capacity:

• Fingerprint Capacity: 500 users

• Face Capacity: 100 users

• ID Card Capacity: 500 cards

• Record Capacity: 50,000 logs

• Face Detection Speed: ≤1 second

• Processor: 1GHz Dual-Core CPU with 256MB RAM / 256MB Flash

Display & Interface:

• Screen: 2.8-inch TFT touchscreen for intuitive navigation

• Communication: TCP/IP, USB Host, Wi-Fi (optional)

• Access Control Interface: Compatible with third-party electric lock, door sensor, and exit button

Advanced Features:

• Biometric Algorithms: ZKFace V3.8 & ZKFinger V10.0

• Multiple authentication methods: Fingerprint, Face, Card, Password

• Standard Functions: ADMS, DST, self-service query, automatic status switch, T9 input, 9-digit user ID, bell scheduling, SSR

• Operating System: Linux

• Camera: 1MP binocular for accurate face recognition

Physical & Environmental Specs:

• Dimensions: 168.0 × 151.5 × 31.7 mm

• Power Supply: DC 5V 2A

• Operating Temperature: 0°C to 45°C

• Operating Humidity: 20% to 80% RH

Software Support:

• Compatible with ZKTime.Net 4.0 for easy time attendance and access management

Warranty: 1-year manufacturer warranty

ZKTeco MB10-VL Hybrid Biometric Time & Attendance & Access Control Terminal

The ZKTeco MB10-VL is a next-generation hybrid biometric terminal that combines efficient workforce management with robust access control. Featuring ZKFace V3.8 for facial recognition and ZKFinger V10.0 for fingerprint verification, it delivers fast, reliable authentication, recognizing users in under 1 second.

Powered by a stable 5V 2A supply and running on a secure Linux operating system, the MB10-VL performs consistently across a wide range of environments, with temperature tolerance of 0°C–45°C and humidity levels of 20%–80%. Its compact design (168 × 151.5 × 31.7 mm) makes it ideal for installations with limited space.

Key Features:

• Multi-modal Verification: Face, Fingerprint, ID Card, and Password

• Seamless Integration: Supports third-party electric locks, door sensors, and exit buttons

• High-capacity Management: Compatible with ZKTime.Net 4.0 for centralized time and attendance tracking

• Intuitive Interface: 2.8-inch TFT touchscreen for easy operation

• Fast & Accurate: Advanced biometric algorithms ensure secure and efficient recognition

The MB10-VL delivers a reliable, flexible, and secure solution for offices, schools, factories, and other facilities, offering both time attendance and access control in a single, compact device.
