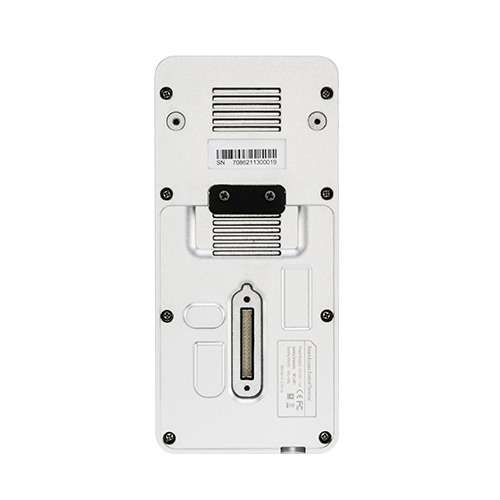

ZKTeco SpeedFace M4 Access Control Terminal

ZKTeco SpeedFace M4 Access Control Terminal

(0 Reviews)

Model: SpeedFace M4
Face / Palm / Card / Password Authentication
Face Capacity: 10,000, Palm Capacity: 3,000 (Optional)
User Capacity: 10,000, Transaction Capacity: 200,000
5" Color LCD with 2MP WDR Binocular Camera

Call for Price

Brand:

Specification

Display
Display	5" ISP Color LCD Screen (1280 × 720)
Camera
Camera	Binocular Camera @ 2MP WDR
Operation System
Operating System	Linux
Hardware
CPU	Quad Core A53 @ 1.2 GHz
RAM	1 GB
ROM	8 GB
Supplement Light	No
Virtual Keypad	16 Keys
Casing Color	Metallic Silver
Authentication
Authentication Method	Face / Card / Password (Virtual Keypad) / Palm (Optional)
Capacity
Face Template Capacity	10,000 (1:N)
Palm Template Capacity	3,000 (1:N) (Optional)
RFID Card Capacity	10,000 (1:N)
User Capacity	10,000 (1:N)
Transaction Capacity	200,000 (Optional: 500K)
Authentication Performance
Max. User Password Length	8 Digits
Biometric Authentication Speed	Less than 0.1 sec (Facial Authentication, Field Test Result) Less than 0.14 sec (Palm Authentication, Field Test Result)
Touchless Biometric Operating Lighting Environment	40 cm to 140 cm (Facial Authentication) 18 cm to 40 cm (Palm Authentication, Optional and Coming Soon)
False Acceptance Rate (FAR)	≤0.01% (Facial Authentication) =0.01% (Palm Authentication)
False Rejection Rate (FRR)	≤0.02% (Facial Authentication) =1.3% (Palm Authentication)
Biometric Algorithm	ZKFace V6.0 & AMTPalmvein V32
Card
Card Type	ID Card @ 125 kHz (Standard) IC Card @ 13.56 MHz (Optional) HID Prox @ 125 kHz (Optional) Felica Card @ 13.56 MHz (Optional) Optional Multi-Tech Module: Module 1: ID & IC & DESFire EV1 / EV2 (125 kHz & 13.56 MHz Dual Frequency)
QR Code
QR Code	Dynamic QR Code on the ZKBio CVAccess Mobile Application (By Face Camera)
Communication
TCP/IP	1
Wi-Fi	IEEE 802.11 b/g/n/a @ 2.4 GHz / 5 GHz (Optional)
Wiegand	Input & Output ×1
RS485	ZKTeco RS485 ×1
Other Interfaces	Aux Inputs ×1, Electric Lock ×1, Door Sensor ×1, Exit Button ×1, Alarm ×1, 12V Output ×1
Standard Functions
Functions	ADMS, Photo Capture, Event Photo Capture, Up to 14-Digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch (Effective Only Under T&A Rules), Multiple Verification Methods, T9 Keyboard (Input), AC Push and TA Push Protocol Switch, HTTPS / SSH Backend Access, Mask Detection, Dynamic QR Code (By Camera)
Optional Functions
Optional Functions	Webserver, Video Door Phone: SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), Wi-Fi, PoE, SRB, External Bell
Video Intercom
Video Intercom (ZKTeco Private Protocol)	Via TCP/IP Supported Devices: Standalone Terminal: SpeedFace M4 (Only ZAM210 Platform) Indoor Monitor: VT07-B01, VT07-B01-W
Video Intercom (Standard SIP Protocol)	Supported Devices: Standalone Terminal: SpeedFace M4 (Only ZAM210 Platform) Indoor Monitor: VT07-B22L, VT07-B26L-W Software: ZKBio CVAccess, BioTalk Pro Mobile App: ZKBio Zlink, ZKBio Zexus
Access Control Interface
Access Control Interface	RS485 (RS485 Card Reader / Biometric Reader)
Power Supply
Power Supply	DC 12V 3A (Optional) PoE: IEEE 802.3at (Optional)
Operating Environment
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Operating Humidity	10% to 90% RH (Non-condensing)
Physical Specifications
Dimensions	212.42 × 103.83 × 50.60 mm (L × W × H)
Gross Weight	1.32 Kg
Net Weight	0.77 Kg
Software
Supported Software	On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH) Cloud-Based Software: ZKBio Zlink (Supports Web Portal & Mobile App)
Installation
Installation	Wall-mount (Compatible with Asian Gang-Box / Single Gang-Box)
Ingress Protection
Ingress Protection Rating	IP66 (Waterproof and Dustproof)
Certifications
Certifications	ISO14001, ISO9001, CE, FCC

Product Details

ZKTeco SpeedFace M4 Access Control Terminal

The ZKTeco SpeedFace M4 is a robust biometric access control terminal designed for reliable facial authentication and secure access management in demanding environments. It features ZKTeco's customized CPU, optimized to run its advanced facial authentication algorithm and deliver efficient biometric processing. The SpeedFace M4 is equipped with PoE (Power over Ethernet) support and a multi-technology card module, providing flexible deployment and authentication options for different access control scenarios. Its durable metal housing is designed for reliable operation in temperatures from -10°C to 50°C, making it suitable for a wide range of indoor and semi-outdoor environments. The terminal also meets the IP66 protection standard, providing enhanced resistance against dust and water exposure. With its customized processing platform, facial authentication technology, PoE support, multi-tech card capability, and durable IP66-rated metal construction, the ZKTeco SpeedFace M4 Access Control Terminal is suitable for offices, commercial buildings, industrial environments, institutions, and other professional access control applications.

Buy ZKTeco SpeedFace M4 Access Control Terminal from TechBox

In Bangladesh, you can buy the original ZKTeco SpeedFace M4 Access Control Terminal from TechBox. We offer a wide range of ZKTeco facial recognition terminals, biometric access control systems, fingerprint devices, RFID readers, and time attendance solutions for offices, businesses, and institutions. Order online from TechBox and get the ZKTeco SpeedFace M4 at a competitive price with reliable service.
