ZKTeco F22 Fingerprint Time Attendance and Access Control Terminal

(0 Reviews)

Key Features

Model: F22
Display: 2.4-inch TFT LCD color screen
Fingerprint Capacity: 3,000 templates (without adapter)
Card Capacity: 5,000 (optional, supports ID or Mifare cards)
Authentication Methods: Fingerprint and Card

Quantity:

Order on WhatsApp Call for order

Specification

Main Features
Fingerprint Capacity	3,000
Face Capacity	N/A
ID Card Capacity	5000(Optional) ID or Mifare card
Display	2.4-inch TFT LCD Color Screen
Communication	RS232, RS485, TCP / IP, USB-host, Wi-Fi
Standard Functions	DST, Automatic Status Switch (Optional), Record query, T9 input, 14-digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS

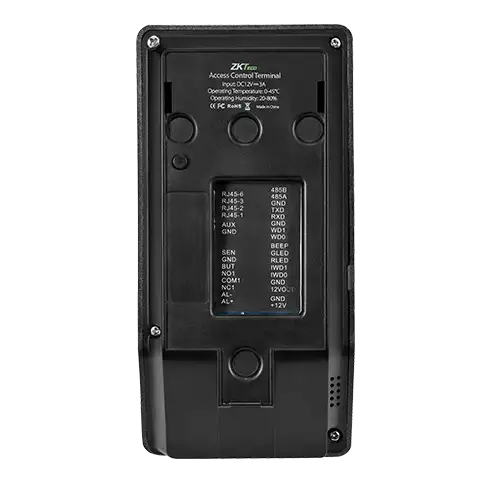

Interface	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Others	Transaction Capacity: 30,000 Sensor: Z-ID Sensor (optional) Algorithm Version: ZKFinger V10.0 Wiegand Signal: Input, Output
Physical Specification
Dimension	158.5 x 78.0 x 19.4mm (LxWxH)
Power Supply	Power Supply: 12V DC, 3A Operating Temperature: 0 °C - 45 °C Operating Humidity: 20% - 80%
Manufacture Warranty
Warranty	01 year warranty

Product Details

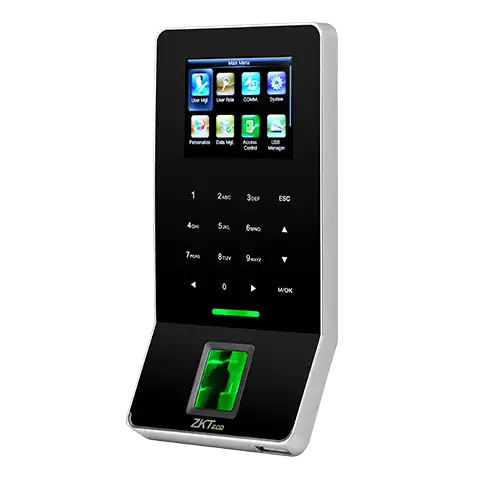

ZKTeco F22 Fingerprint Time Attendance & Access Control Terminal

The ZKTeco F22 is a sleek, ultra-thin biometric terminal designed for efficient time attendance management and secure access control. Equipped with high-performance infrared fingerprint detection and the fastest commercial fingerprint matching algorithm, it delivers precise, reliable, and rapid user verification.

Featuring a 2.4-inch TFT LCD color screen and an intuitive touch keypad, the F22 offers a superior user experience for quick enrollment and authentication. The terminal supports 3,000 fingerprint templates and up to 5,000 optional ID or Mifare cards, accommodating medium to large-scale user bases.

Key Features & Benefits:

Authentication Methods: Fingerprint and Card verification
Connectivity Options: TCP/IP and Wi-Fi for flexible networking
Flexible Installation: Standalone use or integration with third-party access control panels via Wiegand signal
User Experience: Touch keypad for smooth operation and quick verification
Performance: Fast, accurate recognition with high-quality fingerprint sensor

The ZKTeco F22 combines speed, accuracy, and connectivity, making it an ideal solution for offices, factories, and other facilities that require a reliable, professional, and modern access control system.
