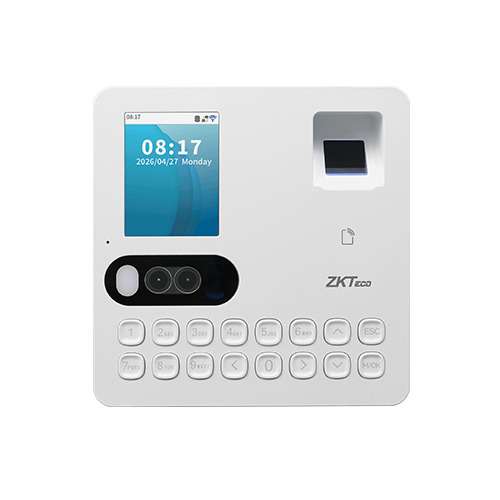

ZKTeco SenseFace T3 Access Control Terminal
- Model: SenseFace T3
- Authentication Method:
- Face / Palm / Fingerprint / Card (Optional) / Password (Physical Keypad)
- Fingerprint Template Capacity: 1,000 (1:N) (Standard)
- Face Template Capacity: 1,000 (1:N), Card Capacity: 1,000 (1:N)
- User Capacity: 1,000 (1:N), Transaction Capacity: 50,000 (1:N)
Specification
| Display | |
|---|---|
| Screen | 2.4" TFT Color LCD Screen (240 × 320) |
| Camera | |
| Camera | Dual Camera @ 1MP |
| Field of View | Diagonal: 160°, Horizontal: 142°, Vertical: 83.2° |
| Operation System | |
| Operating System | Linux |
| Hardware | |
| CPU | ARM Cortex-A7 @ 950 MHz |
| RAM | 128 MB |
| ROM | 128 MB |
| Speaker | 8 Ohm @ 1W |
| Supplement Light | Yes |
| Physical Keypad | 16 Keys |
| Fingerprint Sensor | ZK Optical Sensor |
| Casing Color | White |
| Authentication | |
| Authentication Method | Face / Palm / Fingerprint / Card (Optional) / Password (Physical Keypad) |
| Capacity | |
| Fingerprint Template Capacity | 1,000 (1:N) (Standard) |
| Face Template Capacity | 1,000 (1:N) (Standard) |
| Palm Template Capacity | 1,000 (1:N) (Standard) |
| Card Capacity | 1,000 (1:N) (Standard) |
| User Capacity | 1,000 (1:N) (Standard) |
| Transaction Capacity | 50,000 (1:N) |
| Authentication Performance | |
| Max. User Password Length | 4–8 Digits |
| Biometric Authentication Speed | Less than 1 sec (Fingerprint) Less than 0.5 sec (Face) Less than 0.5 sec (Palm) |
| Touchless Biometric Recognition Distance | 40 cm to 110 cm (Facial) 8 cm to 25 cm (Palm) |
| False Acceptance Rate (FAR) | FAR < 0.0001% (Fingerprint) FAR < 0.5% (Face) FAR < 0.5% (Palm) |
| False Rejection Rate (FRR) | FRR < 0.1% (Fingerprint) FRR < 0.2% (Face) FRR < 0.2% (Palm) |
| Biometric Algorithm | ZKFingerprint V13.0 / ZKFace V34 / ZKPalm V34 |
| Card | |
| Card Type | ID Card @ 125 kHz, IC Card @ 13.56 MHz Multi-Tech Module: ID & IC & DESFire EV1 / EV2 (125 kHz & 13.56 MHz Dual Frequency) |
| Communication | |
| Network | TCP/IP ×1, Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax) @ 2.4 GHz; Wi-Fi 6 Enabled |
| USB | Type-A 2.0 ×1 (USB Drive Only) |
| Standard Functions | |
| Functions | Up to 14-digit User ID, Record Query, Schedule Bell, Multiple Authentication Methods, Online Firmware Upgrade, T9 Keyboard (Input) |
| Power | |
| Power Supply | DC 5V 2A (Type-C USB) |
| Operating Environment | |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | ≤ 90% RH (Non-condensing) |
| Physical Specifications | |
| Dimensions | 125 × 128 × 31 mm (L × W × H) |
| Gross Weight | 0.44 Kg |
| Net Weight | 0.24 Kg |
| Software | |
| Supported Software | Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App) |
| Installation | |
| Installation | Wall-mount |
| Certifications | |
| Certifications | ISO14001, ISO9001, CE, FCC, Equivalent to RoHS |
Product Details
ZKTeco SenseFace T3 Access Control Terminal
The ZKTeco SenseFace T3 is an advanced biometric access control terminal designed for secure and efficient employee authentication and attendance management. It supports Face, Palm, Fingerprint, Card, and Password authentication, providing multiple options for different access control requirements. Powered by a 950MHz ARM Cortex-A7 processor with 128MB RAM and 128MB ROM, the terminal uses ZKFingerprint V13.0, ZKFace V34, and ZKPalm V34 biometric algorithms for fast and reliable recognition. Its dual 1MP camera system supports a wide field of view and enables facial authentication with a recognition distance of 40cm to 110cm, while palm recognition works from 8cm to 25cm. The Deep Learning-based biometric system supports a generous pose angle tolerance of up to ±25° rotation and ±25° tilt for facial and palm authentication. The SenseFace T3 also features enhanced anti-spoofing technology for improved protection against different spoofing attempts and changing environmental conditions. It supports up to 1,000 fingerprint, face, palm, and card templates along with 1,000 users and up to 50,000 transaction records. The terminal features a 2.4-inch TFT color LCD display, 16-key physical keypad, optical fingerprint sensor, speaker, and supplementary light. For connectivity, it supports TCP/IP, dual-band Wi-Fi with Wi-Fi 6, and USB Type-A 2.0. The SenseFace T3 is also compatible with the ZKBio Zlink cloud-based platform and mobile application, allowing managers to manage employees, devices, attendance rules, and real-time reports remotely. With its compact wall-mount design, Type-C power connection, and support for multiple biometric authentication methods, the ZKTeco SenseFace T3 is suitable for offices, businesses, institutions, and modern access control and attendance management systems.
Buy ZKTeco SenseFace T3 Access Control Terminal from TechBox
In Bangladesh, you can buy the original ZKTeco SenseFace T3 Access Control Terminal from TechBox. We offer a wide range of ZKTeco biometric devices, access control terminals, fingerprint machines, facial recognition devices, and attendance solutions for offices, businesses, and institutions. Order online from TechBox and get the ZKTeco SenseFace T3 at a competitive price with reliable service.
