ZKTeco FaceTima 8 Multi-ModaI Access Control

ZKTeco FaceTima 8 Multi-ModaI Access Control

(0 Reviews)

Model: FaceTima 8
Authentication Method:
Face / Palm / Fingerprint / Card (Optional) / Password (Physical Keypad)
Fingerprint Template Capacity: 1,000 (1:N) (Standard)
Face Template Capacity: 1,000 (1:N), Card Capacity: 1,000 (1:N)
User Capacity: 1,000 (1:N), Transaction Capacity: 50,000 (1:N)

Call for Price

Brand:

Specification

System
Operating System	Android 14.0
CPU	1.8 GHz Quad-Core Processor
Storage	4 GB RAM, 64 GB ROM
SDK	Android LCDP, AC PUSH SDK
Basic
Communication	TCP/IP, 4G (Optional), SIP 2.0 Protocol, Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4 GHz & 5 GHz
Cellular Network	4G LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/66/71 4G LTE-TDD: B34/38/39/40/41
Display	8-inch IPS TFT LCD Color Multi-Touch Screen (700 cd/m²)
Camera	2MP Binocular Camera, 120° Wide-Angle, 1280 × 800 Resolution
QR Code	Dynamic QR Codes on the ZKBio Zexus Mobile App
Card Type	Dual Frequency, 125 kHz ID & 13.56 MHz IC / DESFire HID Prox / HID iClass (Coming Soon)
Firmware
User Capacity	100,000
Face Templates Capacity	100,000
Palm Templates Capacity	20,000 (Coming Soon)
Fingerprint Capacity	30,000
Card Capacity	100,000
Transaction Capacity	2,000,000
Standard Firmware Functions	Record Query, Access Levels, Groups, Holidays, Duress Mode, Anti-Passback, Anti-Spoofing, Customization of Wallpaper & Screen Saver, Tamper Switch Alarm, Multiple Authentication Methods, Video Intercom (ZKTeco Private Protocol via TCP/IP, and SIP Client via SIP 2.0)
Language	English, Arabic, Farsi, Spanish, Portuguese, Russian, Thai, French, Indonesian, Japanese, Korean, Vietnamese, Turkish, Traditional Chinese
Software	ZKBio CVSecurity V6.8.0; ZKBio Zexus (Mobile App)
Performance
Ingress Protection Rating	IP66, IK07
Card Reading Distance	1 cm–5 cm
Facial Authentication Distance	0.3 m–1.2 m (Human Height 0.9 m to 2.4 m)
Facial Authentication Time	< 1s
Facial Authentication	1:1, 1:N
Facial Authentication Algorithm	ZKFace VX5630
Facial Authentication FRR	1%
Facial Authentication FAR	0.01%
Fingerprint Sensor Type	Optical
Fingerprint Authentication Time	≤ 0.5s
Fingerprint Authentication Method	1:1, 1:N
Fingerprint Authentication Algorithm	ZKFingerprint V10.0
Fingerprint Authentication FAR	0.0001%
Fingerprint Authentication FRR	0.01%
Interface
USB	1; USB 2.0 (For OTA)
Power Adapter	12V 3A
Ethernet	RJ45, 1000M
RS-485	1 (For ZKTeco Reader)
Wiegand Input	1
Wiegand Output	1
Auxiliary Input	1
Sensor	1
Lock 1	1 (Controlled)
Lock 2	1
Exit Button	1
Alarm	1
Power Output	1, 12V
Reset Button	1
External Battery Detection	1 (Reserved)
External DC Detection	1 (Reserved)
External AC Detection	1 (Reserved)
Microphone	2
Speaker	1
General
Power Supply	12V 3A; PoE (IEEE 802.3at)
Dimensions	277.9 × 134.9 × 34.3 mm
Operating Temperature	-30°C to 60°C (-22°F to 140°F)
Operating Humidity	10% to 90% RH (Non-Condensing)
Operating Environment	Outdoor / Sheltered Outdoor
Gross Weight	2.3 kg
Installation Method	Wall-mounted (Compatible with Asian Gang-Box / Single Gang-Box; Standard) or Turnstile Top-Mount Bracket (Compatible with Rots-02; Optional)
Certifications	ISO14001, ISO9001, CE, FCC, Equivalent to RoHS

Product Details

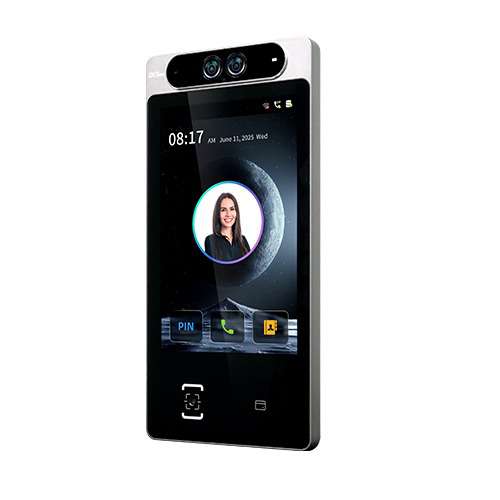

ZKTeco FaceTima 8 Multi-Modal Access Control

The ZKTeco FaceTima 8 is a multi-modal biometric access control terminal designed for secure authentication, employee management, and modern access control applications. It supports multiple authentication methods, including facial recognition, fingerprint, RFID card, and dynamic or static QR code verification, while palm authentication is planned for future support. The terminal offers an expanded capacity of up to 100,000 users, 100,000 card templates, 30,000 fingerprint templates, 100,000 face templates, and 20,000 palm templates with palm support coming soon. Its advanced anti-spoofing algorithm helps protect against print-based attacks, including laser, color, and black-and-white photos, as well as video attacks. The built-in dual-frequency card module supports both 125 kHz and 13.56 MHz technologies for compatibility with a wide range of RFID cards. Designed for demanding environments, the FaceTima 8 features IP66-rated waterproof and dustproof protection and IK07 vandal resistance, with an operating temperature range of -30°C to 60°C. It also includes a built-in PoE power supply, dual-frequency wireless networking, and an optional 4G module for flexible deployment. For system integration, the terminal supports Wiegand and RS-485 interfaces for external reader expansion and uses AES-256-level encryption for biometric credentials and personal information transmission. The device runs on an Android-based platform and supports Android 14.0 for third-party application integration. It also provides an HD video door phone function through SIP Protocol Version 2.0. Featuring a 120° wide-angle binocular camera and an intelligent noise-reduction algorithm, the terminal is designed to provide a wider viewing angle and clearer voice communication. With on-device AI processing and cloud-based intelligence planned for future support, the ZKTeco FaceTima 8 is a versatile solution for offices, commercial buildings, institutions, and advanced access control systems.

Buy ZKTeco FaceTima 8 Multi-Modal Access Control from TechBox

In Bangladesh, you can buy the original ZKTeco FaceTima 8 Multi-Modal Access Control from TechBox. We offer a wide range of ZKTeco biometric devices, facial recognition terminals, fingerprint access control systems, RFID readers, and attendance solutions for offices, businesses, and institutions. Order online from TechBox and get the ZKTeco FaceTima 8 at a competitive price with reliable service.
