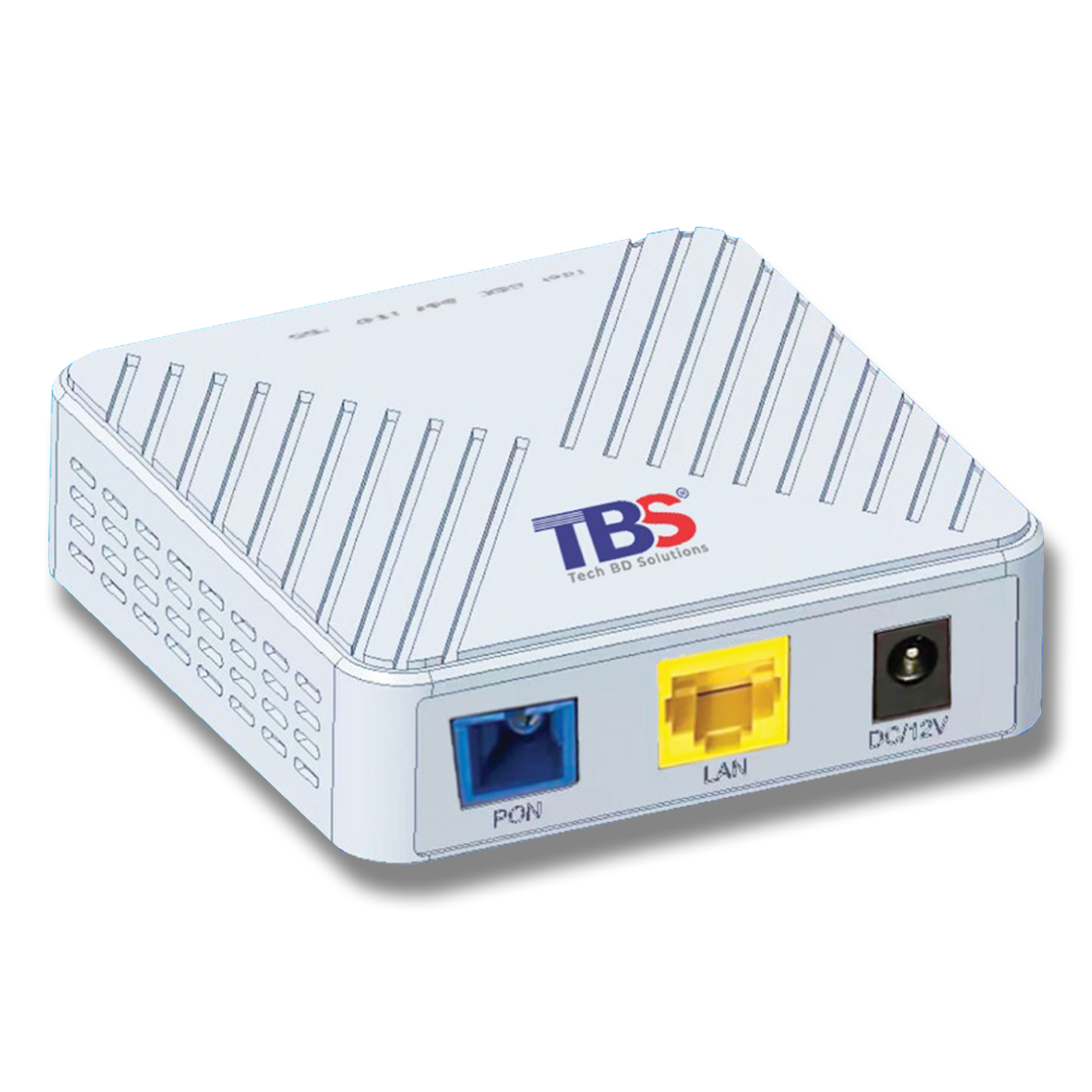

TBS EPON ONU

(0 Reviews)

User Interface: 1GE
Indicator light: Power / PON / LOS / LAN
Button: Power switch Button, Reset Button
PON Interface
- Module type: Class B+ SC/UPC
- Working wavelength: up 1310nm，down 1490nm
- TX Optical power value: 0.5～4dBm
- RX Optical power sensitivity: -27dBm
- Transmission distance: 0～20km
- Transmission rate: Uplink 1.244Gbps；downlink 2.488Gbps

Quantity:

Order on WhatsApp Call for order

Frequently bought together

TBS EPON ONU

৳800

DATEUP 9U Server Rack (600x600x501)

৳13500

Vention KEFB0 Network Cable Tester

৳850

৳15150

Save ৳ 1400

Specification

project	Units	Specification
PON standard.		EPON IEEE802.3ah、GPON ITU-T G.984.x
Optical interface		SC/PC connector, 1 GPON/EPON interface (EPON PX20+ and GPON Class B+). Receiving sensitivity: ≤- 28 dBm. Transmitting optical power: 0~+4 dBm. Transmitting distance: 20 km
speed	Gbps	GPON: Upstream 1.25Gbps, Downstream 2.5Gbps; EPON: Symmetrical 1.25Gbps
wavelength	Nano	send 1310, receive 1490
interface	data	1*10/100/1000Mbps adaptive Ethernet interface, full/half duplex, RJ45 connector
interface	wireless	Compliant with IEEE802.11b/g/n, 300Mbps
index	lead	SYS、REG、LINK/ACT
operating conditions	℃	Operating temperature: -5 ~ +55
Storage Conditions	℃	Storage temperature: -30 ~ +60
humidity	%	10~90 (non-condensing)
power supply	five	DC 12V, 0.5A adapter
energy consumption	W	≤4
aspect	mm	86mm×85mm×25mm(L×W×H)
net weight	Kilogram	0.1

Product Details

It is an Optical Network Unit with one port that gives a high-speed internet access to homes or small businesses.

It is compatible with popular EPON OLT that can support loop detection, IGMP, IGMP snooping, port speed, support for storm suppression, Telnet, CLI, OAM, Web management, NAT, Firewall function and remote software upgrade function. Also, it has a Class B+ SC/UPC module type with Uplink 1.244Gbps and downlink 2.488Gbps transmission rate.
