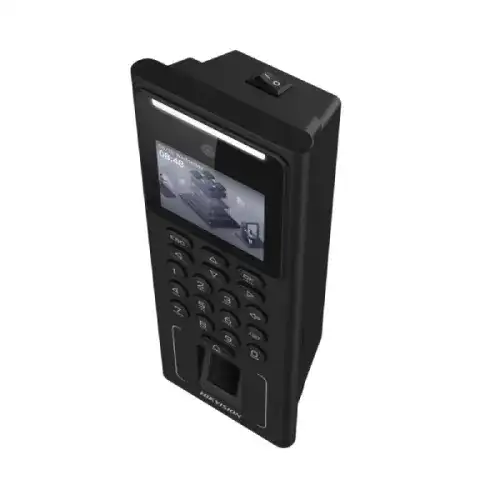

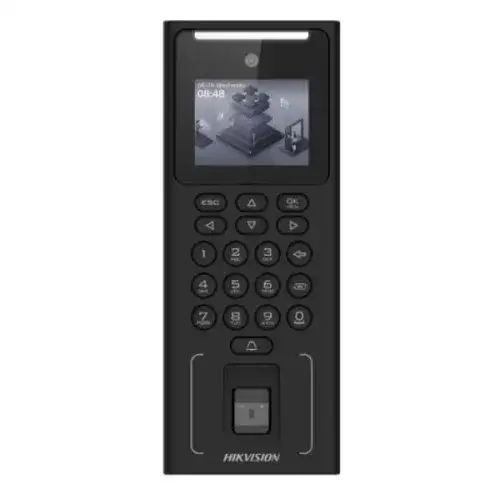

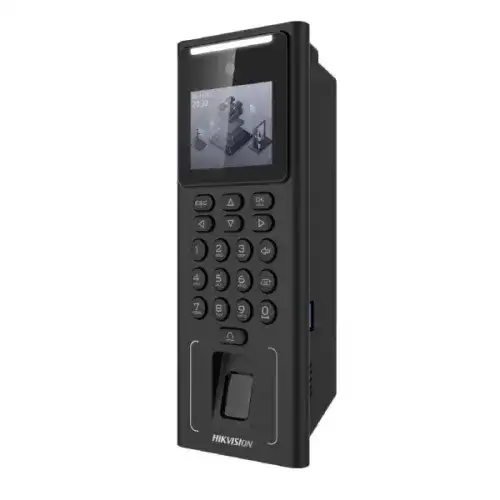

Hikvision DS-K1T321EFWX-B Face Recognition Access Control Terminal

(0 Reviews)

Key Features

Model: DS-K1T321EFWX-B
Display: 2.4-inch LCD screen, 2 MP lens
Authentication Method: Face, Fingerprint, Card (EM card), PIN
Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
Face recognition duration < 0.2 s/User, Wired Network and Wi-Fi (AP mode)

Product Details

Hikvision DS-K1T321EFWX-B Face Recognition Access Control Terminal

The Hikvision DS-K1T321EFWX-B is a Face Recognition Access Control Terminal designed for efficient access control and attendance management. It has a small 2.4-inch LCD screen, a 2 MP lens, 720P video streaming, and supports a number of authentication techniques, such as PIN, EM card, fingerprint scanning, and facial recognition. This Hikvision DS-K1T321EFWX-B attendance machine has a capacity of up to 500 faces, 3000 fingerprints, and 3000 cards, which guarantees strong user management. Its event storage can hold up to 150,000 records. Face recognition works within a range of 0.3 to 1.5 meters, has a success rate above 99%, and takes less than 0.2 seconds to process each recognition. The Hikvision DS-K1T321EFWX-B Face Recognition Access Control, which is powered by a Linux-based system, is compatible with 2.4G 802.11b/g/n and wired and wireless network connections. A PC or mobile web client may be used to easily manage configuration, and the terminal is compatible with ISUP 5.0 and ISAPI protocols. This Hikvision Attendance machine has features including lock control, exit button, and door contact inputs for complete access control, and it easily interacts with secure door control units or card readers via RS-485. The Hikvision DS-K1T321EFWX-B Face Recognition Access Control has a built-in buzzer for audio output, a USB interface, and a tamper-proof mechanism for versatility and dependability. With a power usage of less than 6W, it can be supplied by a 12VDC source or an auxiliary battery in the bracket.

Specifications

Main Features
Fingerprint Capacity	3000
Face Capacity	500
ID Card Capacity	3000
Record Capacity	150,000
Display	2.4-inch LCD screen, 2 MP lens
Interface	1x RJ-45, 10/100 M self-adaptive 1x RS-485 (Half duplex) 1x Lock control 1x Exit button 1x Door contact input 1x TAMPER 1x USB
Others	Face recognition distance: 0.3 m ~ 1.5 m Face recognition accuracy rate: > 99% Face recognition duration: < 0.2 s Card type: EM card Wi-Fi: Support, 2.4 G, 802.11b/g/n Supports ISAPI and ISUP 5.0 protocols Configuration via the PC web client and mobile web client Supports wired network and Wi-Fi (AP mode) Supports wiring with secure door control unit or card reader via RS-485 Supports power supply by battery in the bracket Supports access control and local time and attendance function
Physical Specification
Power Supply	12 VDC (Supports power supply by battery in the bracket) ≤ 6 W Power consumption
Others	Operating system: Linux
Manufacture Warranty
Warranty	1 years
