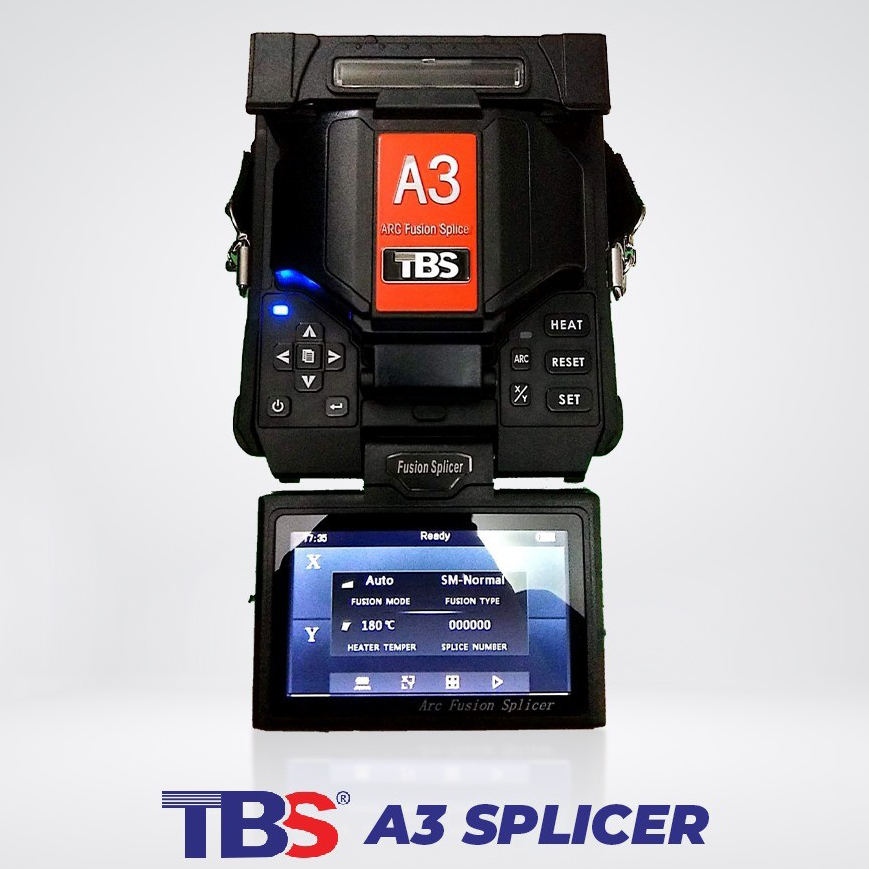

TBS A3 Splicer


1. 7 seconds splicing time, 26s heating time.
2. Handheld, small, and light;1.9kg weight.
3. Rechargeable 5200mAh battery could support 250 cycles of splicing and heating.
4. Switchable SOC (Splice On Connector)
5. Automatic arc calibration.;
6. Enhanced Durability with Ceramic Clamp
7. Rubber bumper for better protection.
8. Two-year warranty.


Product Details

1. 7 seconds splicing time, 26s heating time.

2. Handheld, small, and light;1.9kg weight.

3. Rechargeable 5200mAh battery could support 250 cycles of splicing and heating.

4. Switchable SOC (Splice On Connector)

5. Automatic arc calibration.;

6. Enhanced Durability with Ceramic Clamp

7. Rubber bumper for better protection.

8. Two-year warranty.

Specifications

ItemSplicer Machine
Splicing Time7 Second
Splicing Program40 group
Fiber Cleave Length5-16mm ( coating diameter 250um)
16mm (coating diameter: 250-1000um)
Applicable FiberSM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
Heating Time26 Second
Tension Test1.8-2.2N
Operate ModeManual / Automatic
Result Storage4000 Result
Display4.3-inch color LCD monitor
BatteryRechargeable 5200mAh
InterfaceGUI menu interface, easy for operation
PowerInput: AC 100-240V(50/50Hz), Output: 11-13.5V
OthersCould support 250 cycles of splicing and heating
Weight1.90Kg
Dimension149 x 120 x 127mm
  • Switchable SOC (Splice On Connector)
  • Automatic arc calibration
  • Enhanced Durability with Ceramic Clamp
  • Rubber bumper for better protection
  • Electrodes live More than 4000 ARC discharges
  • Terminal: USB 2.0 port, for software upgrading and records exporting
