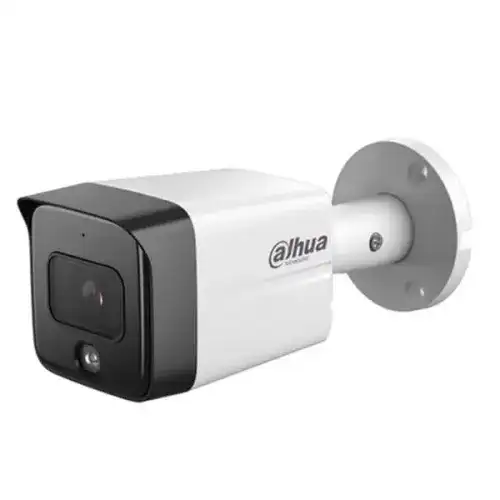

Dahua DH-IPC-HFW1239TC1-A-LED 2MP Full Color Fixed Focal Bullet IP Camera

(0 Reviews)

Key Features

Model: DH-IPC-HFW1239TC1-A-LED
Image Sensor: 1/2.8" Progressive Scan CMOS
Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps
Lens: 2.8 mm;3.6 mm, Aperture: F1.6, IR Distance: 30 meters
Features: PoE, IP67, DWDR, 3D NR, Smart Detection, Built-in Microphone

Call for Price

Brand:

Specification

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	1920 (H) × 1080 (V)
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Day & Night	Auto(ICR)/Color/B/W
Min. Illumination	0.005 lux@F1.6 (Color,30 IRE) 0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on)
SNR (dB)	>56 dB
Angle Adjustment	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Others	ROM: 16 MB RAM: 64 MB
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm;3.6 mm
Aperture	F1.6
Field of View	2.8 mm: H: 104°; V: 55°; D: 124° 3.6 mm: H: 88°; V: 44°; D: 105°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft)
DORI Distance	2.8 mm: 44.1 m(144.69 ft), 17.7 m(58.07 ft), 8.8 m(28.87 ft), 4.4 m(14.44 ft) 3.6 mm: 58.9 m(193.24 ft), 23.6 m(77.43 ft), 11.8 m(38.71 ft), 5.9 m(19.36 ft)
Others	Human Detection: Support the classification and accurate detection of human Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Illuminator
IR LEDs	2 (IR LED); 2 (Warm light)
IR Distance	Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light)
Illuminator Control	Auto;Manual
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Resolution	1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Main Stream	1920 × 1080@(1–25/30 fps)
Sub Stream	704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	2 streams
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
Gain Control	Auto;Manual
Noise Reduction	3D NR
Region of Interest (ROI)	Yes (4 areas)
Mirror	Yes
Privacy Masking	4 areas
Others	Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Audio
Audio Compression	G.711a; G.711Mu; PCM; G.726
Built-in Microphone	Yes, built-in Mic
Storage
Network Storage	FTP
Network
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability	ONVIF (Profile S; Profile T); CGI
API	Yes
User/Host	6 (Total bandwidth: 24 M)
Client	iOS;Android
Interface
Network Interface	RJ-45 (10/100 Base-T)
Alarm
General Alarm	Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95%
Water Protection	IP67
Power
Power Supply	12 VDC/PoE (802.3af)
PoE Standard	802.3af
Power Consumption	Basic: 1.8 W (12 VDC); 2.3 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminatorintensity): 6.3 W (12 VDC); 7.8 W (PoE)
Physical Information
Casing Material	Metal+plastic
Dimension	180.4 mm × 70 mm × 70 mm (7.10" × 2.76" × 2.76") (L × W × H)
Weight	Net Weight: 0.29 kg (0.64 lb) Gross Weight: 0.40 kg (0.88 lb)
Warranty Information
Warranty	1 Year

Product Details

Dahua DH-IPC-HFW1239TC1-A-LED 2MP Full Color Fixed Focal Bullet IP Camera

The Dahua DH-IPC-HFW1239TC1-A-LED 2MP Full-color Bullet Network IP Camera is a professional-grade security solution that combines high-definition imaging with intelligent monitoring to deliver superior performance for both residential and commercial environments. Equipped with a 1/2.8" progressive scan CMOS sensor, this security camera captures crisp 1080p full-color video at up to 30fps, ensuring clear visibility even in low-light conditions. Unlike traditional IR cameras, it features a warm LED illumination with up to 30m coverage, allowing vivid color reproduction at night for enhanced detail recognition. Its fixed-focal lens options (2.8mm or 3.6mm) provide wide-angle coverage with apertures of F1.6, delivering sharp images across different viewing angles. Built with IP67-rated weatherproof housing, the Dahua DH-IPC-HFW1239TC1-A-LED is engineered to withstand harsh outdoor conditions, making it ideal for perimeter security, parking lots, and building entrances. The Dahua IP camera supports Power over Ethernet (PoE) for simplified installation and flexible deployment, while its built-in microphone enables audio recording to complement video evidence. Advanced features such as human detection, motion detection, video tampering alerts, and abnormality detection (network disconnection, IP conflict, illegal access) ensure proactive monitoring and quick response to potential threats. For storage efficiency, the Dahua DH-IPC-HFW1239TC1-A-LED bullet camera utilizes Smart H.264+/H.265+ compression technology, reducing bandwidth and storage requirements without compromising image quality. The Dahua DH-IPC-HFW1239TC1-A-LED offers a cost-effective yet powerful solution for full-color monitoring around the clock.
