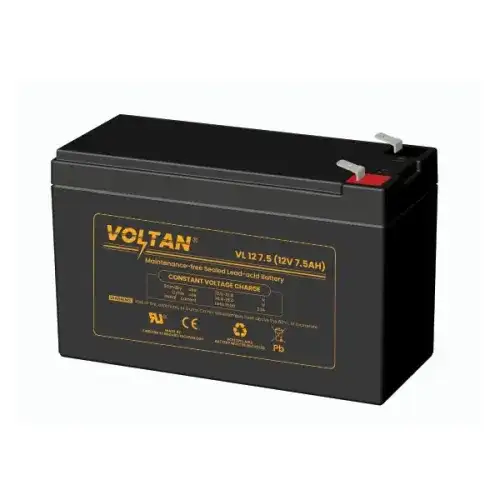

Voltan 12V 7.5AH UPS Battery
Key Features
- Model: Voltan 12V 7.5AH
- Nominal Voltage (V): 12V
- Nominal Capacity: 7.5AH
- Internal Resistance: Approx. 28mΩ
- Terminal Material: Copper
| General Information | ||
| Capacity | 7.5AH | |
| Input Voltage | 12V | |
| Max. Charging Current | 2.1A | |
| Resistance | Approx. 28mΩ (Fully charged, 25oC) | |
| Terminal | T1 | |
| Max. Discharge Current | 105A(5 sec.) | |
| Self Discharge | 3 month: Remaining Capacity: 91% (25°C) 6 month: Remaining Capacity: 82% (25°C) 12 month: Remaining Capacity: 65% (25°C) | |
| Operating Temperature | Discharge: -15°C~50°C(5°F~122°F) Charge: -10°C~50°C(14°F~122°F) Storage: -20°C~50°C(-4°F~122°F) | |
| Others | Float Charging Voltage (25°C): 13.60 to 13.80V Temperature compensation: -18mV/oC | |
| Physical Information | ||
| Material | Terminal: Copper | |
| Dimension | Length: 152±1.5mm (5.98inch) Width: 67±1mm (2.64inch) Height: 99±1mm (3.90inch) Total Height: 105±1mm (4.13inch) | |
| Weight | 2.0kg (4.41lbs)±5% | |
| Warranty Information | ||
| Warranty | 6 Months warranty | |
The Voltan 12V 7.5AH UPS Battery is a compact, high-performance sealed lead-acid battery designed to provide reliable backup power in a wide range of critical applications, including home and office UPS systems, medical devices, emergency lighting, and telecommunications equipment. Featuring a nominal voltage of 12V and a capacity of 7.5AH, this battery ensures stable power delivery during power outages and voltage fluctuations.
With an internal resistance of just 28 milliohms (fully charged at 25°C), the battery reduces energy loss and enhances operational efficiency. The T1 terminal, constructed from high-conductivity copper, minimizes heat buildup and extends the battery's lifespan. It is engineered to handle high-demand situations with a peak discharge current of 105A for 5 seconds, ideal for systems that require rapid surge loads, while its maximum charging current of 2.1A supports faster recharge times.
The Voltan 12V 7.5AH UPS Battery is maintenance-free and built for longevity, retaining 91% of its capacity after 3 months, 82% after 6 months, and 65% after 12 months at 25°C. This ensures consistent performance even after extended storage periods. It operates within a broad temperature range, with a discharge temperature of -15°C to 50°C, a charging temperature range of -10°C to 50°C, and a storage temperature range of -20°C to 50°C. This makes it resilient in extreme conditions, from cold winters to high-heat environments.
The battery features a float charging voltage between 13.60V and 13.80V at 25°C, with a temperature compensation rate of -18mV/°C to ensure stable performance despite varying temperature conditions.
Physically, it is designed for compactness, measuring 152±1.5mm in length, 67±1mm in width, and 99±1mm in height, with a total height of 105±1mm and a weight of approximately 2.0kg (±5%). With its robust design, thermal adaptability, and efficiency, the Voltan 12V 7.5AH UPS Battery is the ideal choice for users needing a reliable, long-lasting, and high-performance backup solution.
The Voltan 12V 7.5AH UPS Battery comes with a 6-month warranty, ensuring reliable performance during this period. The warranty covers manufacturing defects and issues related to the battery's functionality under normal operating conditions. It does not cover damage due to misuse, incorrect installation, or improper handling. Please retain your purchase receipt as proof of purchase for warranty claims.
